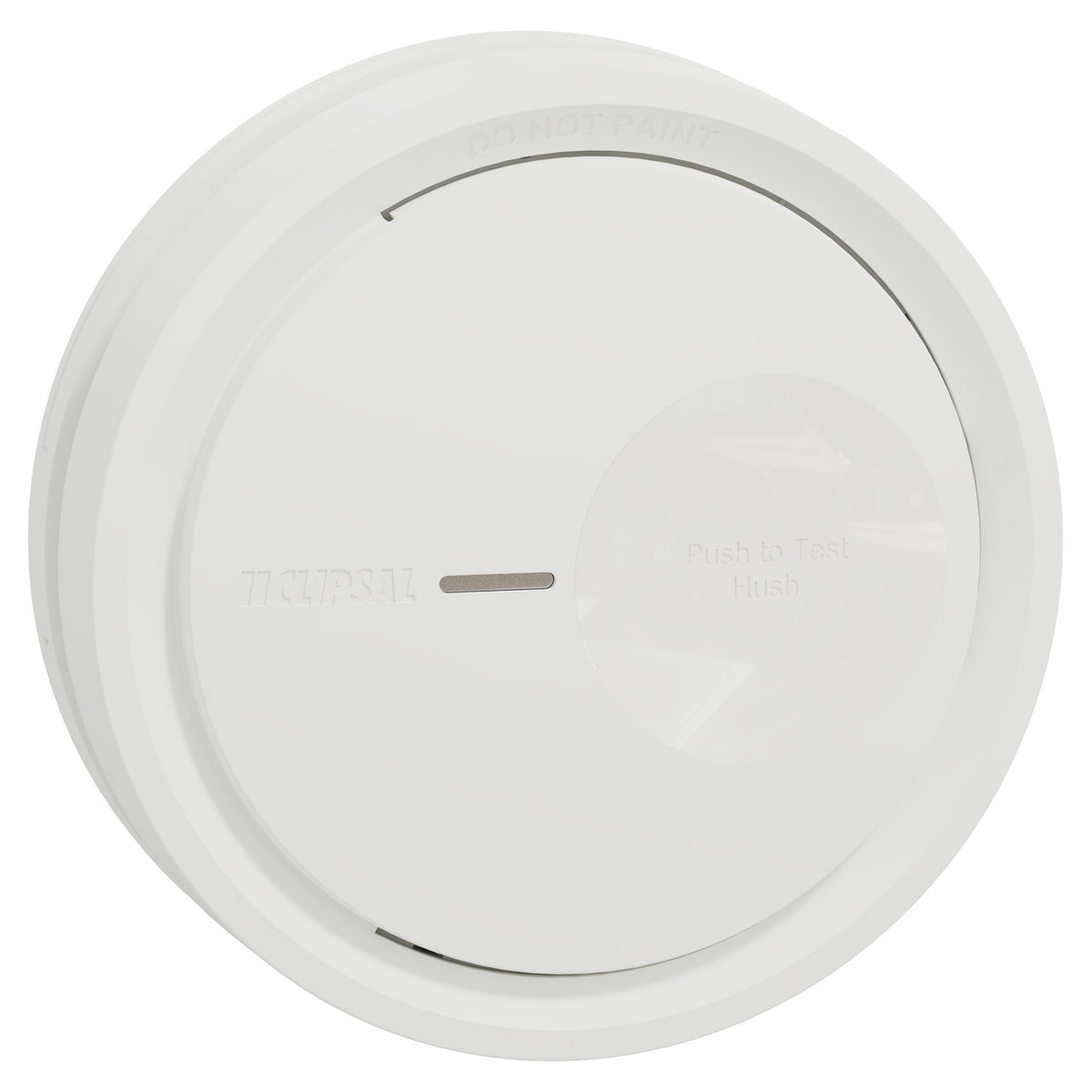

The Clipsal 755PSMA5 is a 240V mains powered photoelectric smoke alarm with 9V battery backup, from Clipsal's latest 755 Series. It is certified to the current AS 3786:2023 standard and can be interconnected with up to 40 alarms, so when one alarm detects smoke, they all sound.
A single Test/Hush button handles monthly testing and silences nuisance alarms, and the slim surface mount design suits ceilings and walls in homes, units and rentals.
New model, works with your older Clipsal alarms. The 755PSMA5 is the latest version of the 755PSMA4 and interconnects with earlier Clipsal models including the 755PSMA2, 755RLPSMA2, 755RLPSMA4 and 755PFM4, so you can mix old and new alarms on the same network.
Features
Photoelectric smoke sensing
240V mains powered with 9V battery backup (battery included)

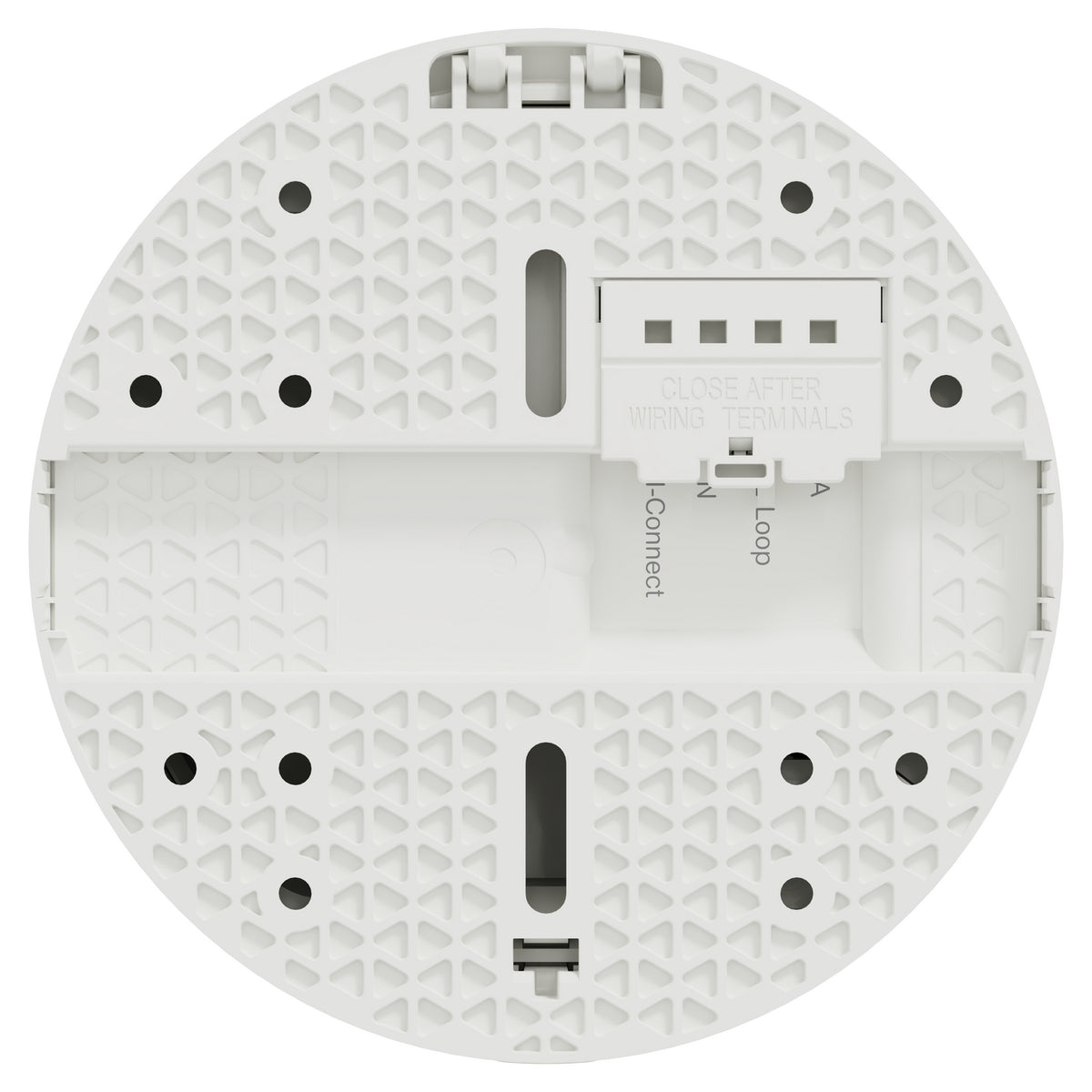

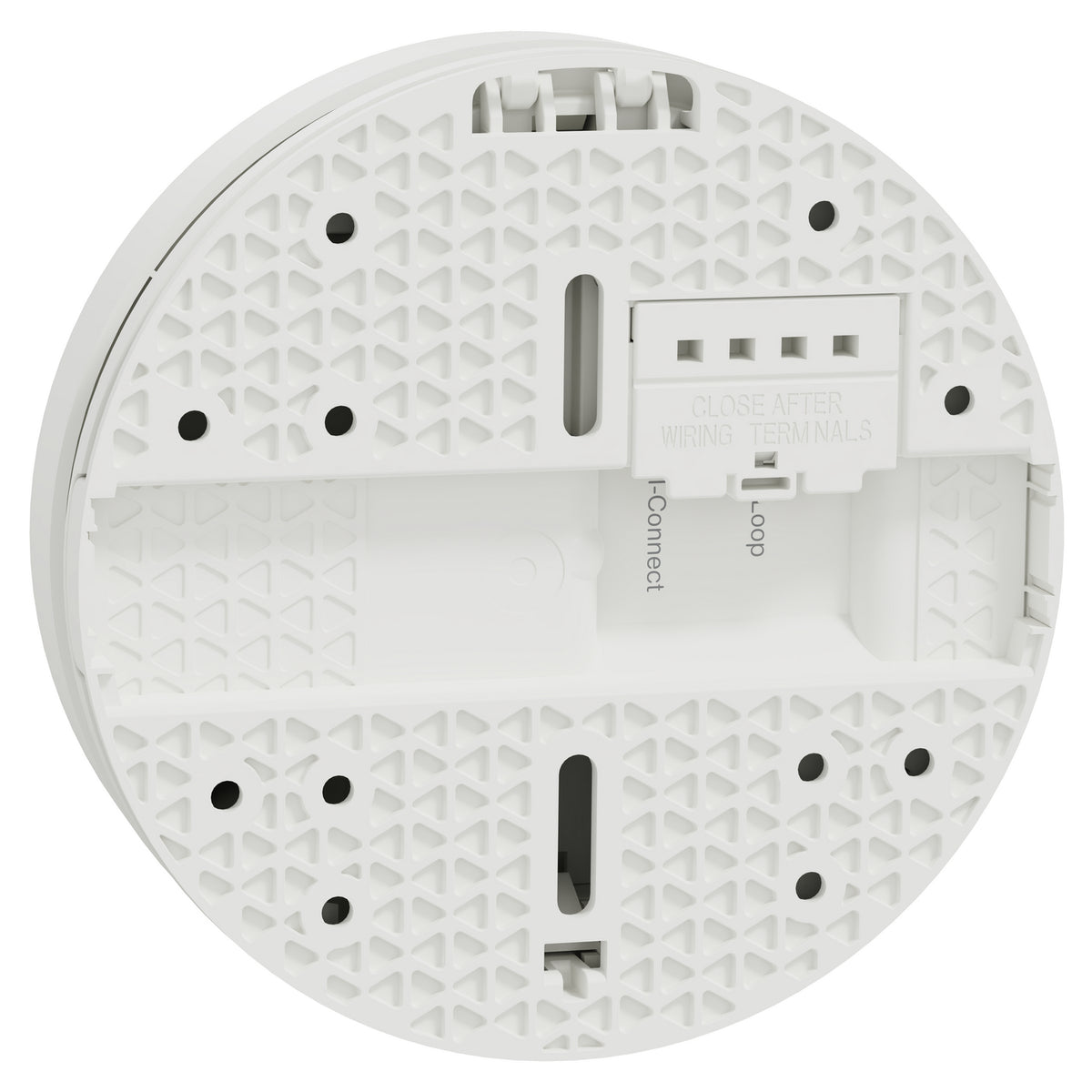

Interconnect up to 40 alarms (wired, max. 150m run) via I-Connect terminals
Wireless interconnect option when fitted to the Clipsal 755RFB2 RF base (sold separately)

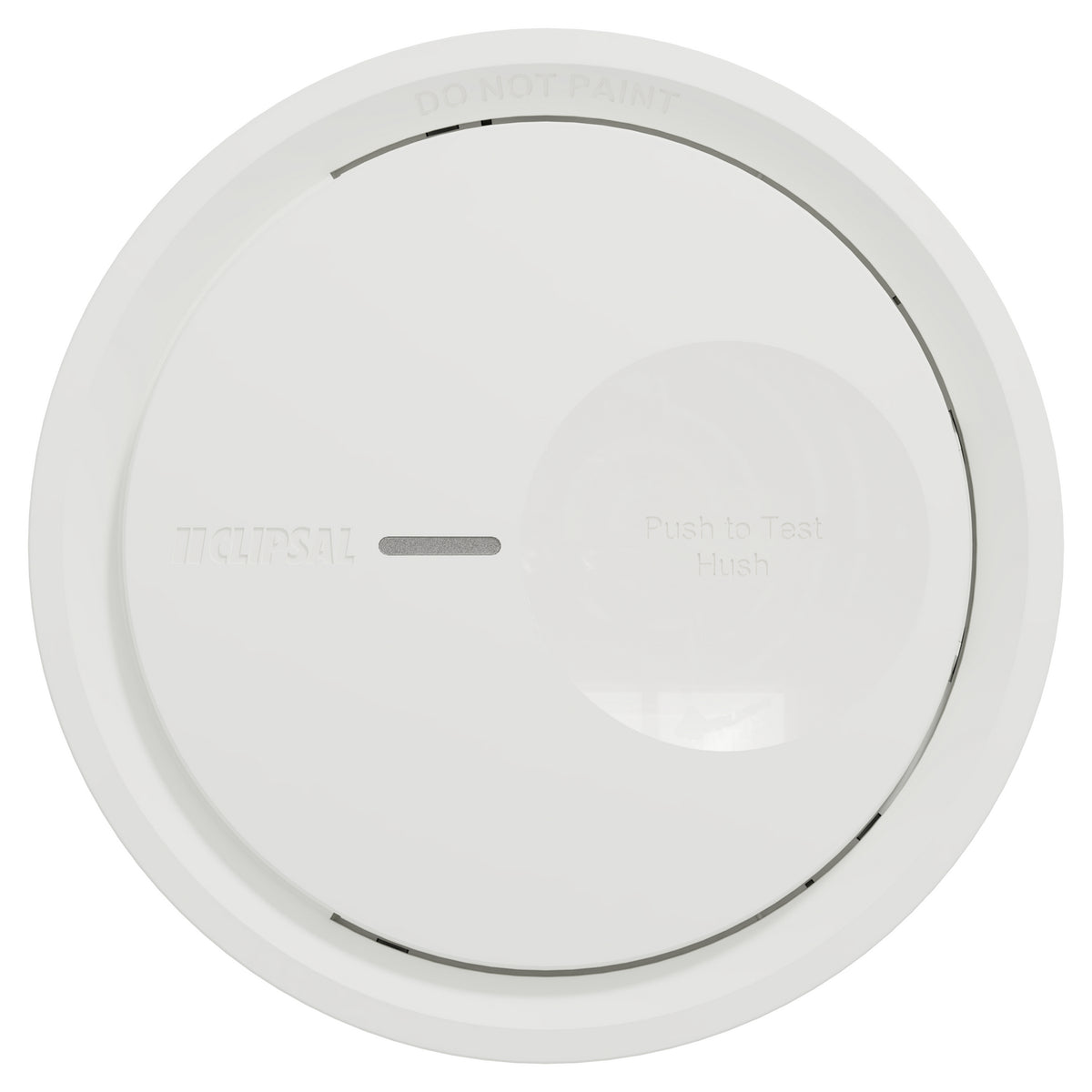

Single Test/Hush button

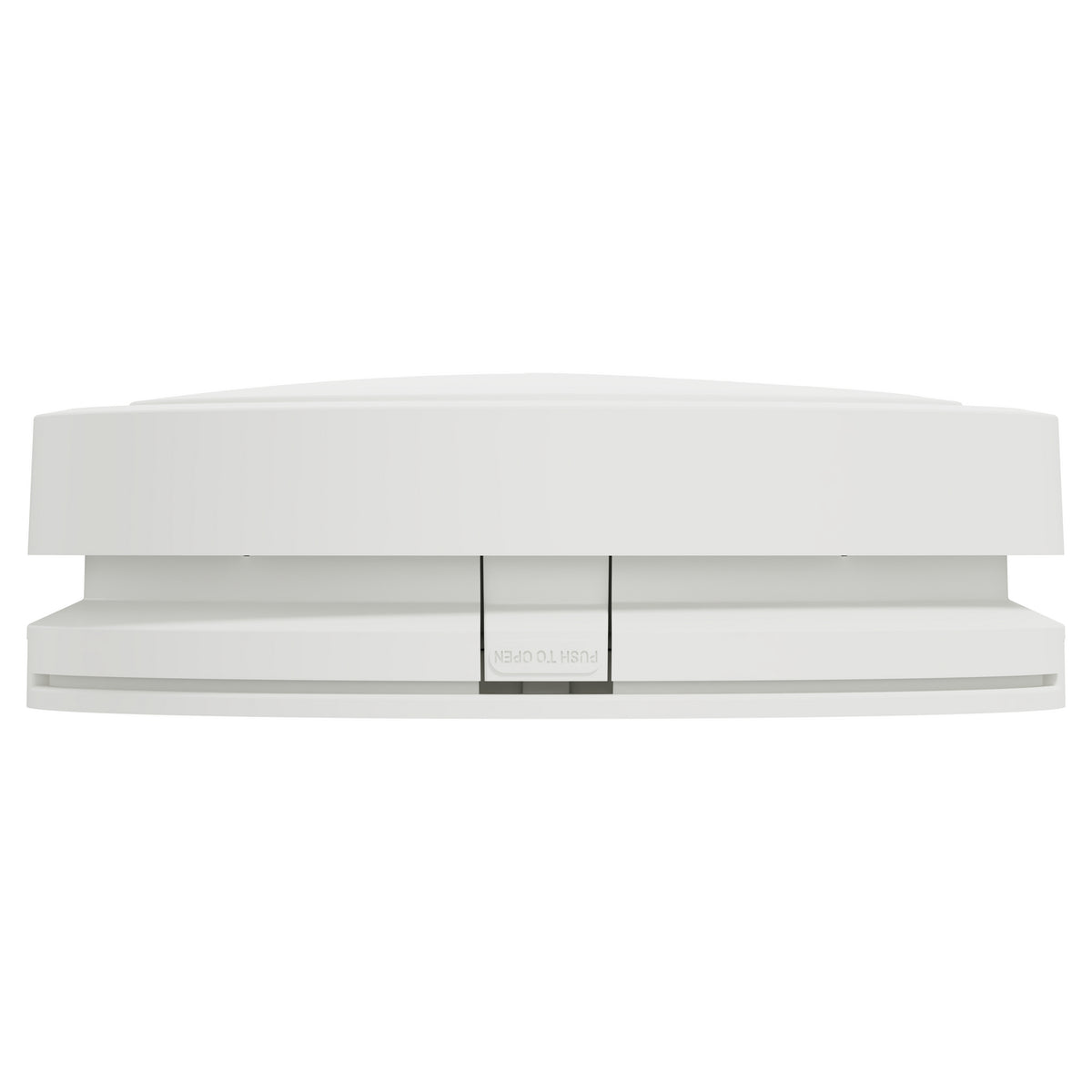

Surface mount on ceiling or wall
Certified to AS 3786:2023
Specifications
Part number: 755PSMA5
Supply: 220-240V AC, 50Hz
Backup battery: 9V alkaline (Duracell MN1604 or Energizer 522)
Sensor: Photoelectric
Mounting: Surface mount, ceiling or wall
Dimensions: 140mm diameter x 44.5mm
Interconnection: Up to 40 devices, max. 150m wired
Suited to new builds, renovations and smoke alarm upgrades in homes, units and rental properties that need hard-wired, interconnected photoelectric alarms.
Package Includes
1 x Clipsal 755PSMA5 Photoelectric Smoke Alarm with dust cover
1 x 9V backup battery
2 x Self-tapping screws
2 x Screw anchors
This product must be installed by a licensed electrician. Unlicensed electrical work is unsafe and against the law.
