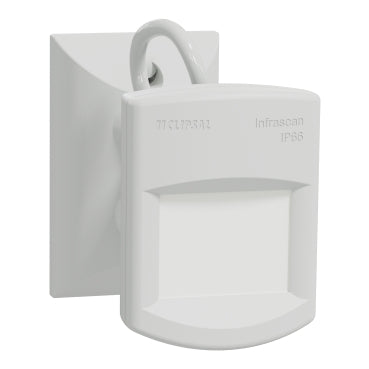

Clipsal 750WPR5-GY - Outdoor PIR Motion Sensor - 3 Wire - IP66 - Grey

The Clipsal 750WPR5-GY Infrascan Outdoor Motion Sensor is a premium PIR movement sensor designed for reliable outdoor lighting control in residential and commercial applications. Featuring a robust IP66 rated housing, UV protection and a wide detection range, the Infrascan provides dependable performance in Australian outdoor conditions.

With adjustable sensitivity, lux level and time delay settings, the 750WPR5-GY allows you to customise lighting control to suit your requirements. The sensor detects movement up to 18 metres with a 110° detection angle and is suitable for wall or ceiling mounting. :contentReference[oaicite:1]{index=1}

Features

• Genuine Clipsal Infrascan motion sensor
• Model: 750WPR5-GY
• Outdoor PIR motion detection
• 3 wire design
• IP66 rated - dust and weather resistant
• Grey finish
• Detection range up to 18 metres
• 110° detection angle
• Adjustable time delay, sensitivity and lux settings
• Manual override function
• UV protected housing designed for Australian conditions
• Suitable for LED and lighting loads
• Wall or ceiling mounting options
• Ideal for residential and commercial applications

Specifications

• Brand: Clipsal
• Series: Infrascan
• Model: 750WPR5-GY
• Product Type: PIR Motion Sensor
• Colour: Grey
• Voltage: 200-265V AC
• Frequency: 50Hz
• Current Rating: 10A
• Detection Range: Up to 18 metres
• Detection Angle: 110°
• Timer Adjustment: 5 seconds - 20 minutes
• IP Rating: IP66
• Mounting: Wall or Ceiling
• Wiring: 3 Wire

Ideal Applications

• Outdoor lighting control
• Garages
• Driveways
• Carports
• Walkways
• Gardens
• Residential properties
• Commercial buildings
• Security lighting applications

Package Includes

• 1 x Clipsal 750WPR5-GY Outdoor PIR Motion Sensor

Installation

Installation must be completed in accordance with local electrical regulations and manufacturer instructions.
