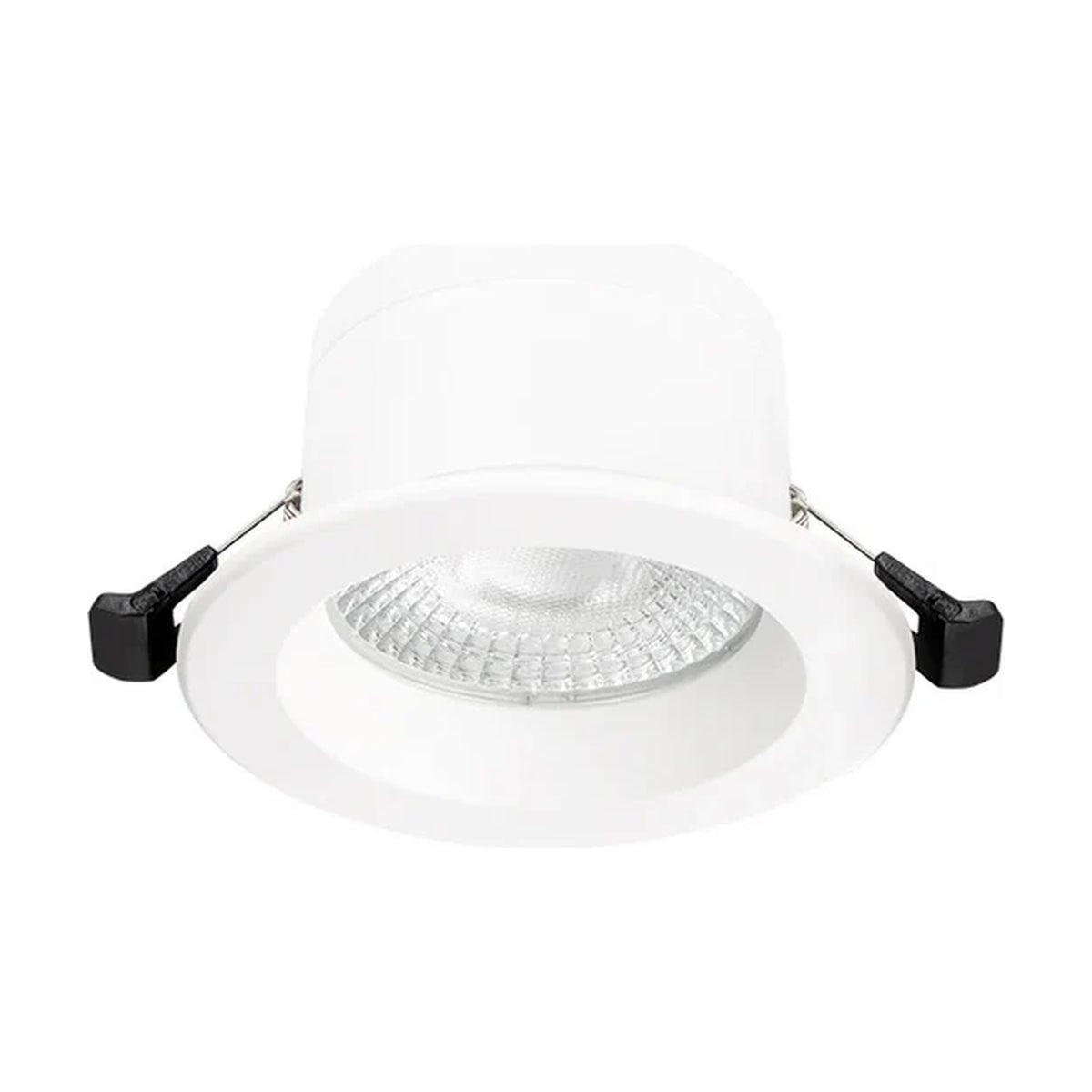

ECONOLED EC7 Trend Downlight 7w LED Tri Colour - White EC7-TRI-W-LT
ECONOLED EC7 Trend Downlight 7w LED Tri Colour - White EC7-TRI-W-LT
Regular price
$36.00 AUD
Regular price
Sale price
$36.00 AUD
Shipping calculated at checkout.

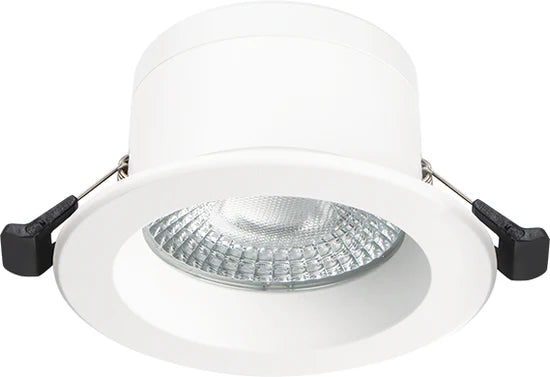

Econoled EC7
7W IP65 Rated Recessed Tri-colour Downlight- Recessed COB fixed LED downlight with broad trim and wide collimating lens
- Manufactured with an aluminium body and finished with corrosion resistant powder coating
- An ideal lighting solution for residential and commercial applications
- Colour temperature can be selected via a switch at the rear of the luminaire, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
- Supplied with remote flicker free Leading & Trailing Edge dimmable driver
- INCLUDES FLEX AND PLUG
Physical Characteristics
Trim Colour
White
|
Black

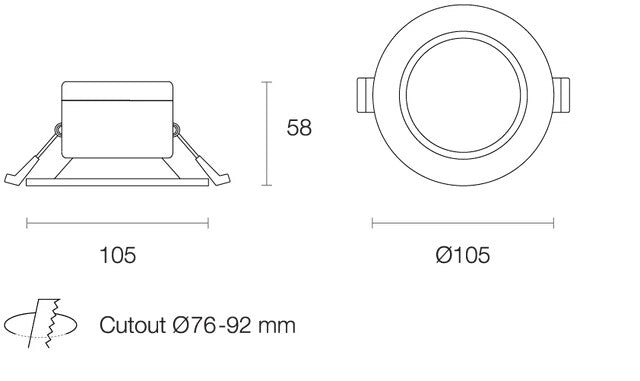

Dimensions
⌀105 X 58 (H) mm
Weight
160 g
Cutout
Circle - 76 - 92 mm
Spring Height
20 mm
General Characteristics
Family
Trend For Trade
,
Econoled
Surface
Ceiling
Mounting
Recessed
Insulation Contact
IC-4
Ingress Protection
IP65
Technical Characteristics
LED Power
7W
LED Type
COB
LED Lumen Output*
802 lm
Efficacy*
Up to 96 lm/W
CCT Technology
Tri-colour Selectable
Colour Temperature
3000K, 4000K, 5700K
Colour Technology
CRI 90+ Standard
Colour Deviation
SDCM ≤ 3
Lifetime
50,000 hours (L70)
Beam Angle
Wide
System Power
8.3W Typical
Driver Model
Trend 150210-200 (L&T)
Input
200-240V AC 50 Hz
Output
30-42V DC 200mA
Power Factor
>0.95
Protection
OVP
,
OTP
,
OCP
,
SCP
,
OPP
Driver
Leading & Trailing Edge
