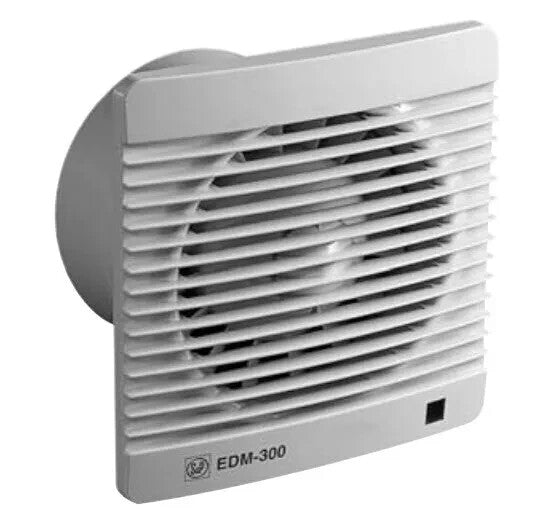

Fantech Fantech EDM-300S | 150mm Wall / Ceiling Mounted Exhaust Fan

The EDM Series can be wall or ceiling mounted and is suitable for exhausting stale and moist air from homes, town houses and commercial buildings. Available in models to suit 100, 125 and 150mm duct sizes. The EDM-100 is also available in a 12V model suitable for caravans and mobiles homes.

Features

• Includes a high quality mechanical backdraft shutter that prevents outside air entering building when fan is switched off (except EDM-100S, EDM-200S and EDM-300S models)
• The EDM-100 is also available in a 12V model suitable for caravans and mobiles homes
• ‘CT-4PL' Range - Includes 8 minute run-on timer, shutters, and 4 pin plug and lead. Model EDM-200 only.
• ‘12V' Unit - Suitable for wet areas (IPX7): requires a low-voltage transformer. Model EDM-100S-12V only.
• All models can be used to exhaust along a short length of duct. It is essential allowances be made for pressure losses in the duct to ensure air flows will meet the requirements of the application.
• 300 model features a slim line body.
• Grille can be easily removed for cleaning.
• All models, except the EDM-100S-12V, feature a pilot lamp.
• Class B motor, IP44 rated.
• Not speed controllable.

Construction
All units have weather and impact resistant housings.

Motor
Type - shaded-pole induction motor.
Electricity supply - single-phase 230V, 50Hz
Bearings - Ball
Maximum ambient temperature - 40°C
Class II insulation, IP44 rated*.
*The EDM-100 12V has Class III insulation, IP57.

Internal Protection
Model 100 - impedance
Model 200 & 300 - fuse

Testing
Air flow to ISO5801:1997
Noise to BS848:Part 2, 1985
