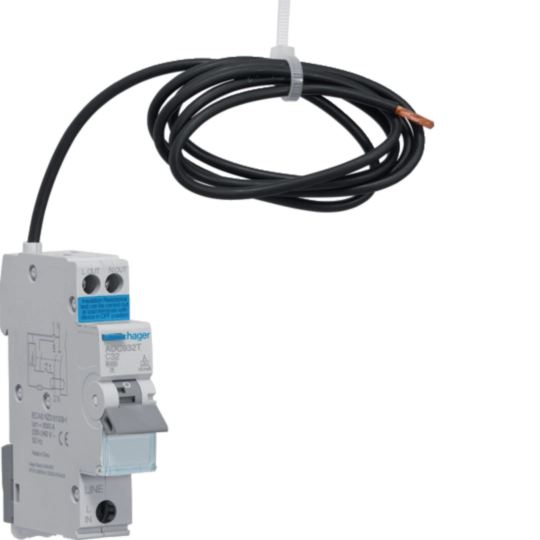

Hager ADC932T - 32 Amp 6 kA Single Pole RCBO (Copy)
Hager ADC932T - 32 Amp 6 kA Single Pole RCBO (Copy)
Regular price
$38.00 AUD
Regular price
Sale price
$38.00 AUD
Shipping calculated at checkout.
Compact combination devices which provide overcurrent protection and earth leakage protection. The Type A devices, with a switched neutral, are available in various current ratings from 6A - 40A. A 1 module RCBO is specifically designed for DIN rail enclosures but can also be used in Invicta panel boards. It is supplied with a 1 mtr long neutral-in fly lead.
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | ADC932T |
| Current | 32 Amp |
| Connection Type | Screw |
| Depth | 70 mm |
| Height | 92 mm |
| Frequency | 50 Hz |
| IP Rating | IP20 |
| Interrupt Capacity | 6 kA |
| Modules | 1 Module 17.5 mm |
| Mounting Method | DIN Rail |
| Number Of Poles | 1 Pole |
| Terminal Connection | 1 / 10 sq-mm Flexible / 1 / 16 sq-mm Rigid |
| Temperature | 25 to 80 deg C |
| Trip Characteristic | C Curve |
| Voltage | 240 Volt |
| Trip Sensitivity | 30 mA |
