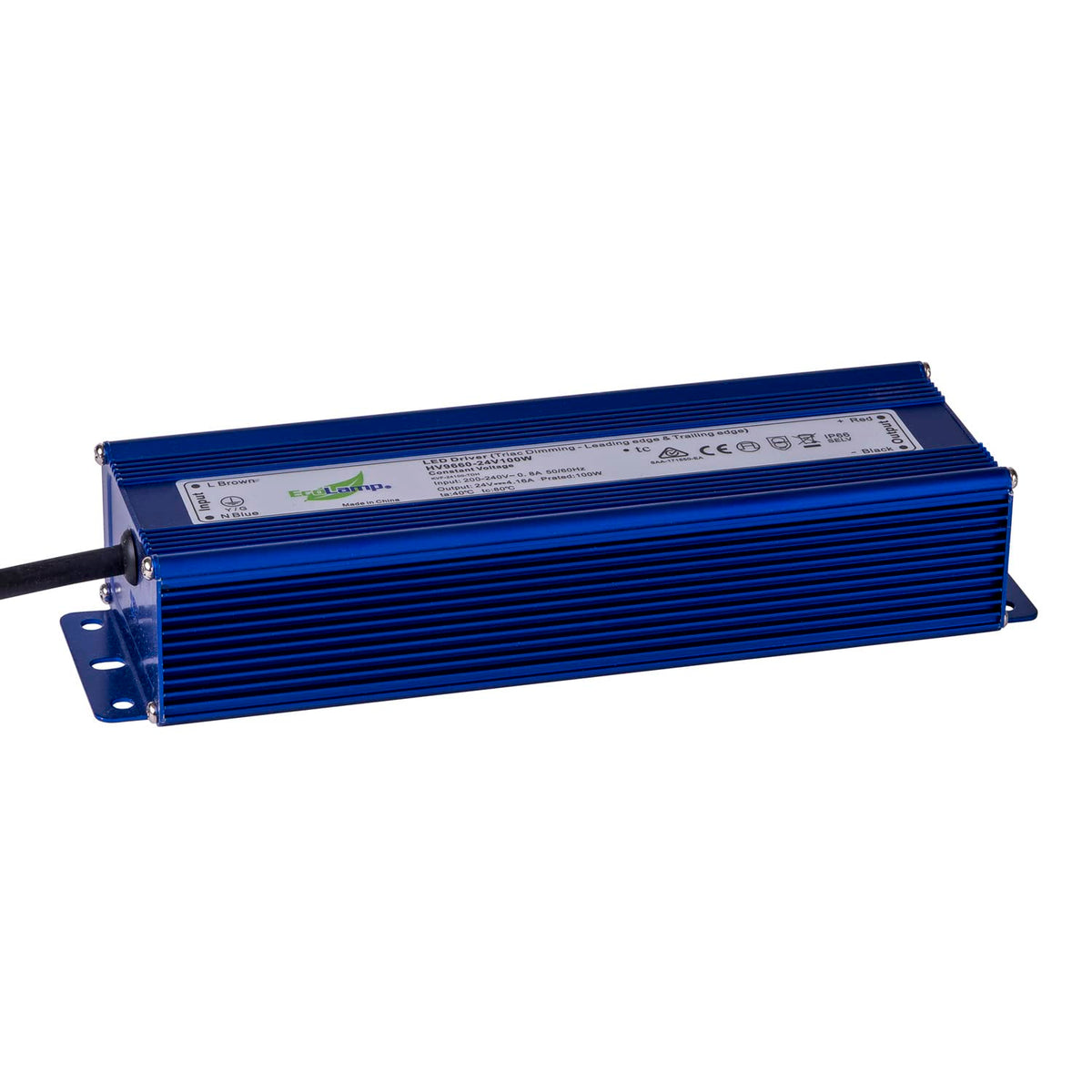

Havit HV9660-24V150W Triac Dimmable LED Driver 24V 150W Weatherproof IP66

Havit HV9660-24V150W Triac Dimmable LED Driver - 24V, 150W, IP66

Genuine Havit weatherproof LED driver with triac dimming. The largest in this range, built for long outdoor strip runs, facade lighting and landscape installations where the driver sits exposed to the weather.

Features

• Triac dimmable - works with leading or trailing edge wall dimmers
• IP66 weatherproof - suitable for outdoor installation
• 150W output for long runs or multiple circuits
• Constant voltage 24V DC output
• Full aluminium housing for heat dissipation
• Built in active PFC, high efficiency
• Short circuit, overload, over current and over temperature protection

Specifications

• Brand: Havit Lighting
• Catalogue number: HV9660-24V150W
• Input: 240V AC
• Output: 24V DC constant voltage
• Output power: 150W
• IP rating: IP66 weatherproof
• Housing: Aluminium
• Warranty: 3 year replacement

Sizing your driver

Keep total load at around 80% of the rated output. Running a driver at full capacity shortens its life, particularly outdoors where ambient temperatures are higher.

Installation

Mount out of direct sun where possible and allow airflow around the housing - IP66 keeps water out but heat still needs somewhere to go. Electrical work must be carried out by a licensed electrician.

Brand new, genuine Havit stock. Fast dispatch from Sydney.
