Havit HV9660-12V30W Triac Dimmable LED Driver 12V 30W Indoor IP20

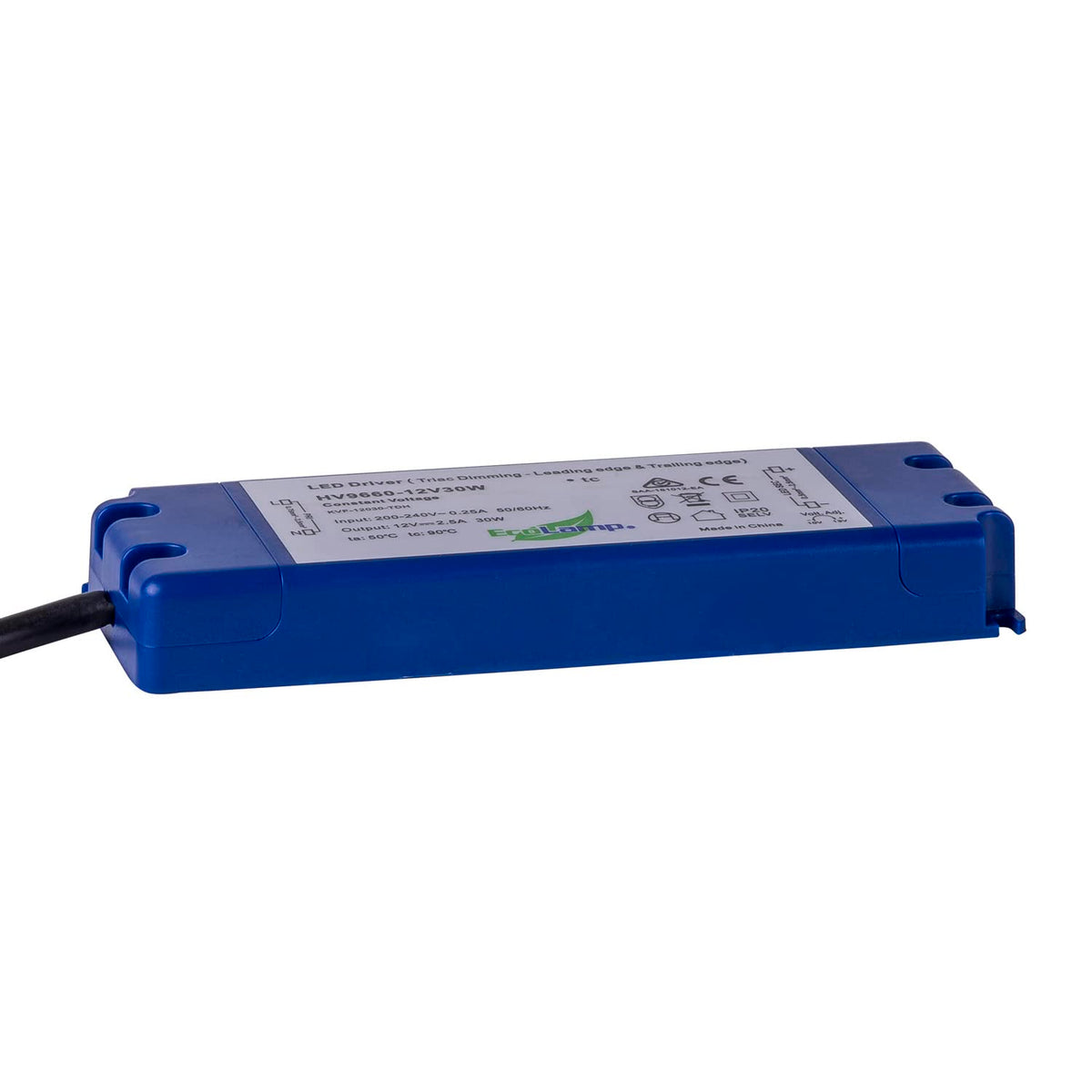

Havit HV9660-12V30W Triac Dimmable LED Driver - 12V, 30W

Genuine Havit indoor LED driver with triac dimming. Converts 240V mains to 12V DC constant voltage for LED strip, cabinet lighting and low voltage fittings, and dims from a standard wall dimmer rather than needing a special controller.

Features

• Triac dimmable - works with leading or trailing edge wall dimmers
• Dimming range 10% to 100%
• Supplied complete with flex and plug - no hard wiring needed
• Constant voltage 12V DC output
• Short circuit, overload, over current and over temperature protection

Specifications

• Brand: Havit Lighting
• Catalogue number: HV9660-12V30W
• Input: 240V AC
• Output: 12V DC constant voltage
• Output power: 30W
• Recommended maximum load: 24W
• Recommended minimum load: 3W
• IP rating: IP20 - indoor use only
• Warranty: 3 year replacement

Sizing your driver

Do not run the driver at its full rated output. Add up the wattage of everything on the circuit and keep it at or under the recommended maximum load of 24W. Running a driver flat out shortens its life. Stay above the 3W minimum too, or the dimming will be unstable.

Installation

Mount in a dry, ventilated position with access for future replacement. Electrical work must be carried out by a licensed electrician.

Brand new, genuine Havit stock. Fast dispatch from Sydney.
