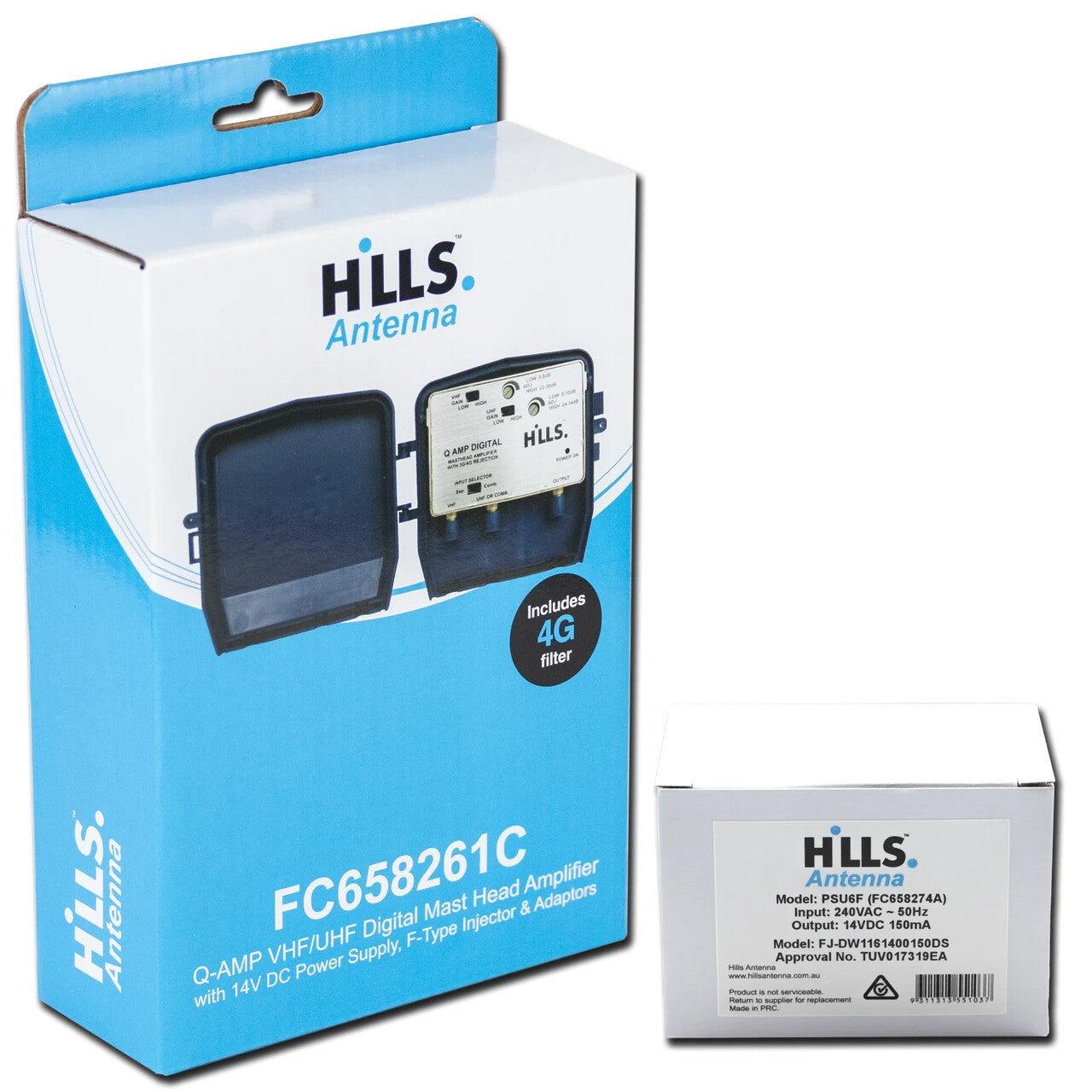

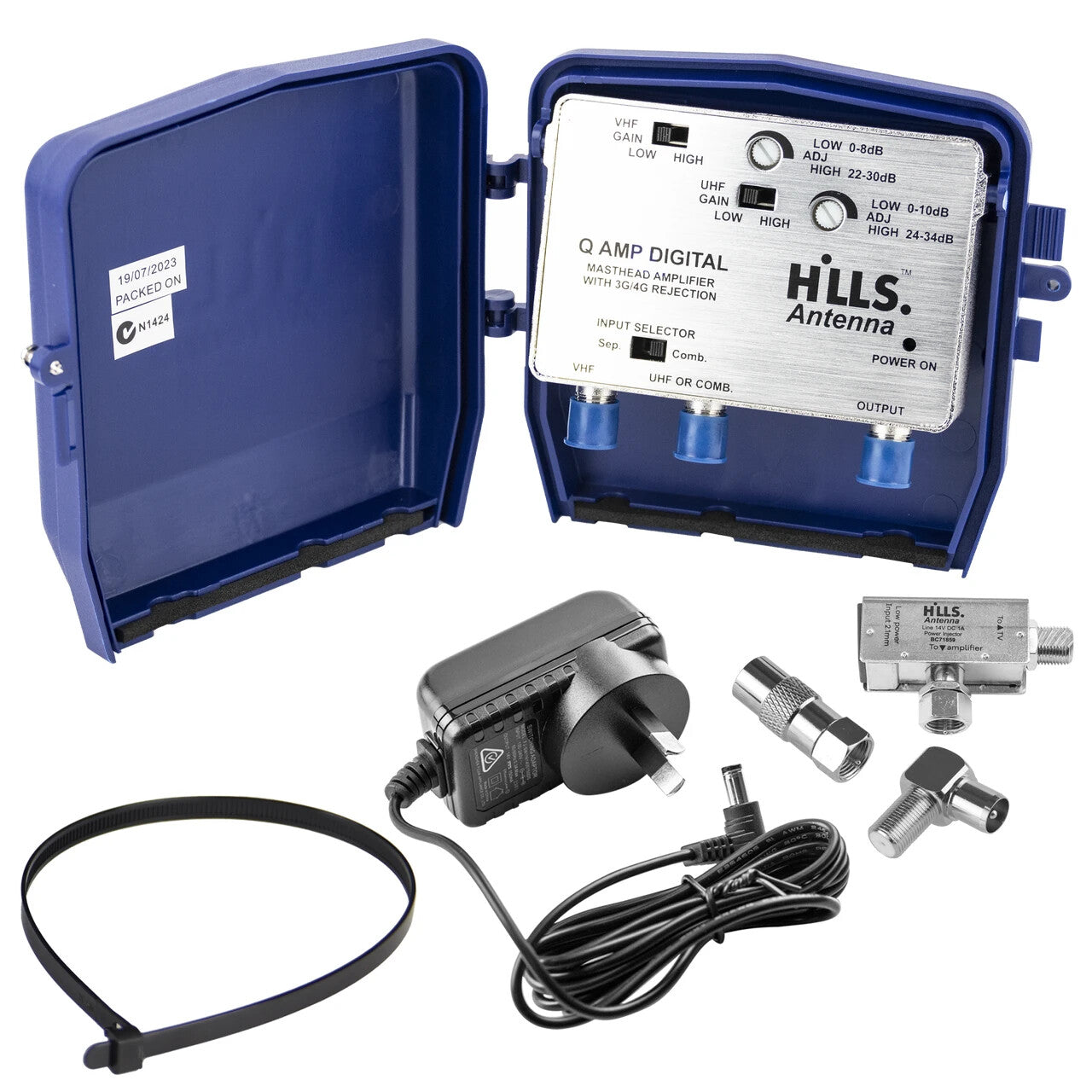

The Hills Antenna Q-Amp Digital amplifier is a fully flexible high gain masthead amplifier, designed in Australia for domestic and commercial TV reception applications. It is an all purpose amplifier, with it's combination UHF/VHF capabilities making it ideal for the full range of installations.

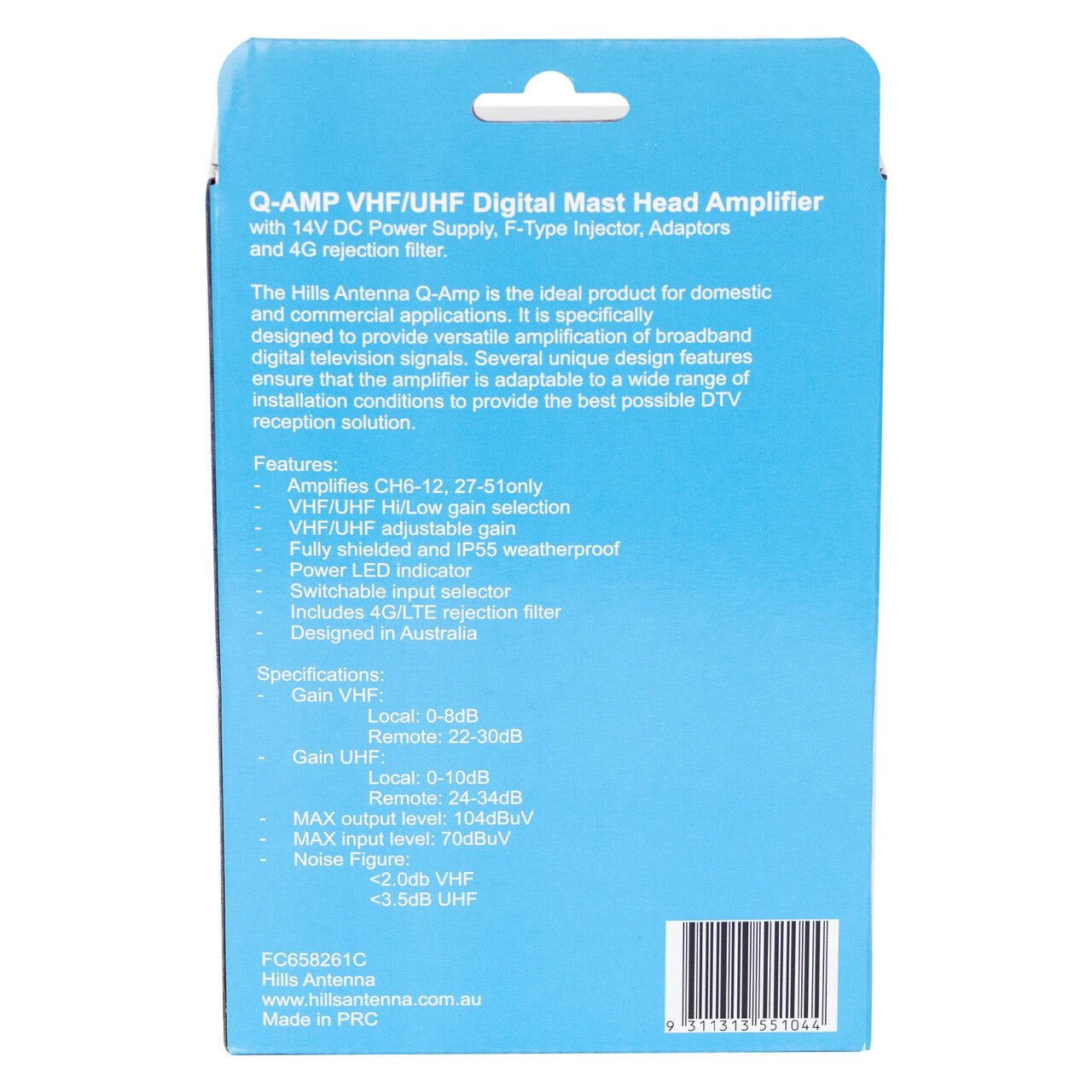

Features :

• Amplifies Channels 6-12 (VHF) & 28-51 (UHF)
• Separate or combined VHF & UHF input options
• VHF/UHF Hi/Lo gain (prevents overloading)
• Adjustable Gains between amplifier stages
• Low noise figure
• Fully shielded enclosure to eliminate interference
• Weatherproof case included
• Power LED indicator
• Switchable inputs
• 4G/LTE rejection filter included

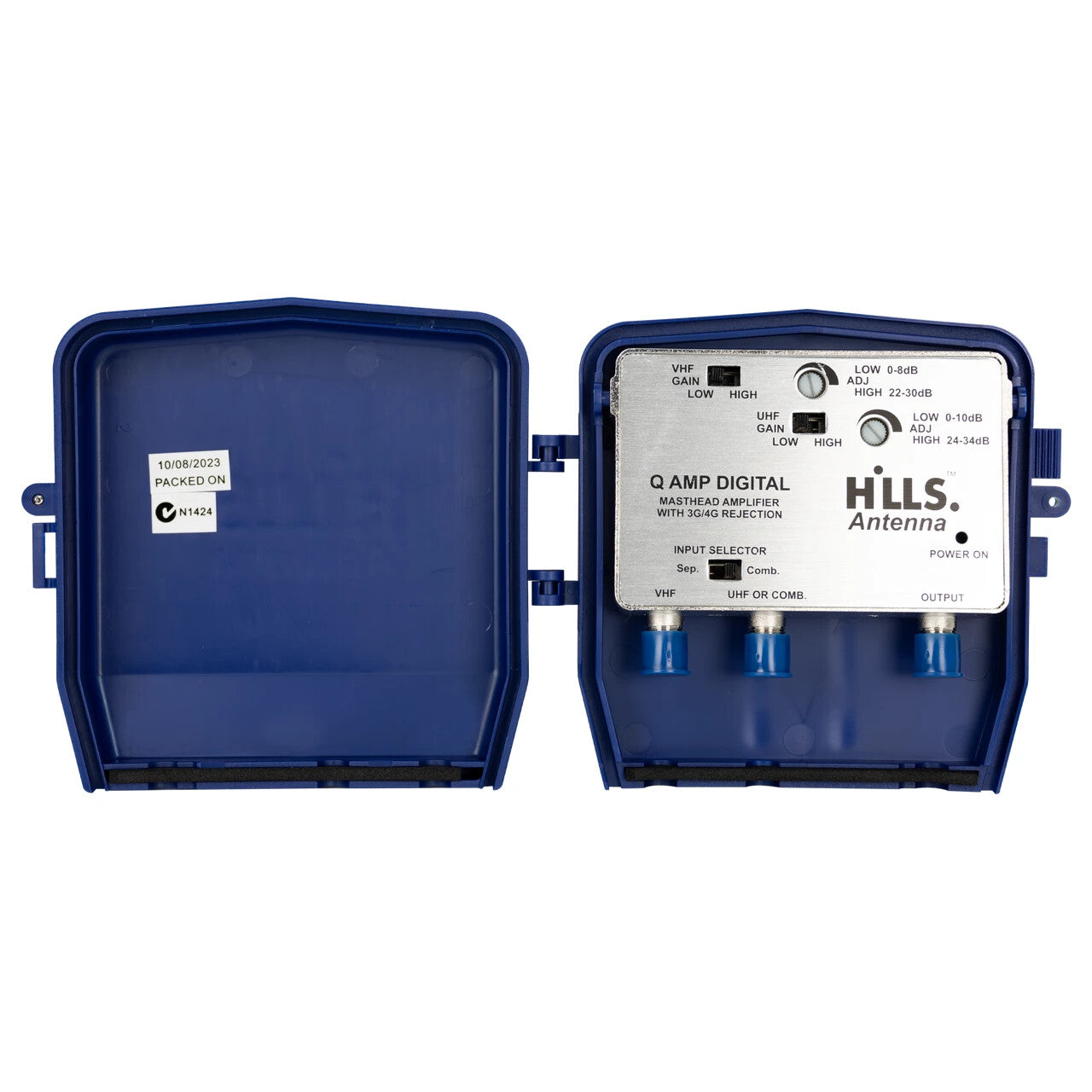

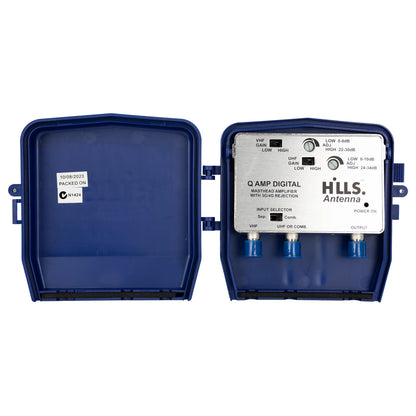

The Hills Antenna Q-Amp Digital Amplifier is a fully flexible high gain masthead amplifier, designed in Australia for domestic and commercial TV reception applications. The Q-Amp contains separate VHF and UHF low noise pre-amplifiers, which are followed by a more powerful amplifier stage. A high pass filter ensures Band 1 (Ch 0 - 3) and FM signals are not amplified, ensuring better channel loading and improved impulse noise performance. By switching either frequency to "low gain", the pre-amplifier stage is bypassed and the gain is limited to avoid overloading the amplifier. This is recommended when signal levels are greater than approx. 60 dBuV. Designed with a very low noise figure, minimum distortion and channel loading characteristics and adjustable gain, the Q-Amp can be adjusted to provide optimum reception in even the most difficult locations. The Q-Amp is the solution to your many different installation applications. There's no need for many different masthead amplifiers that are VHF only, UHF only or even wideband only. The Q-Amp provides it all in a compact weatherproof case.

4G Filter: True

Connection Type: F-Type
Frequency Range: 525-694MHz
Gain: VHF (0-8 & 22-30dB), UHF (0-10 & 24-34dB)
Number of Channels: 28-51
Number of Inputs: 2
Number of Outputs: 1
Plug Type: PSU6 F-Type
Warranty: 1
