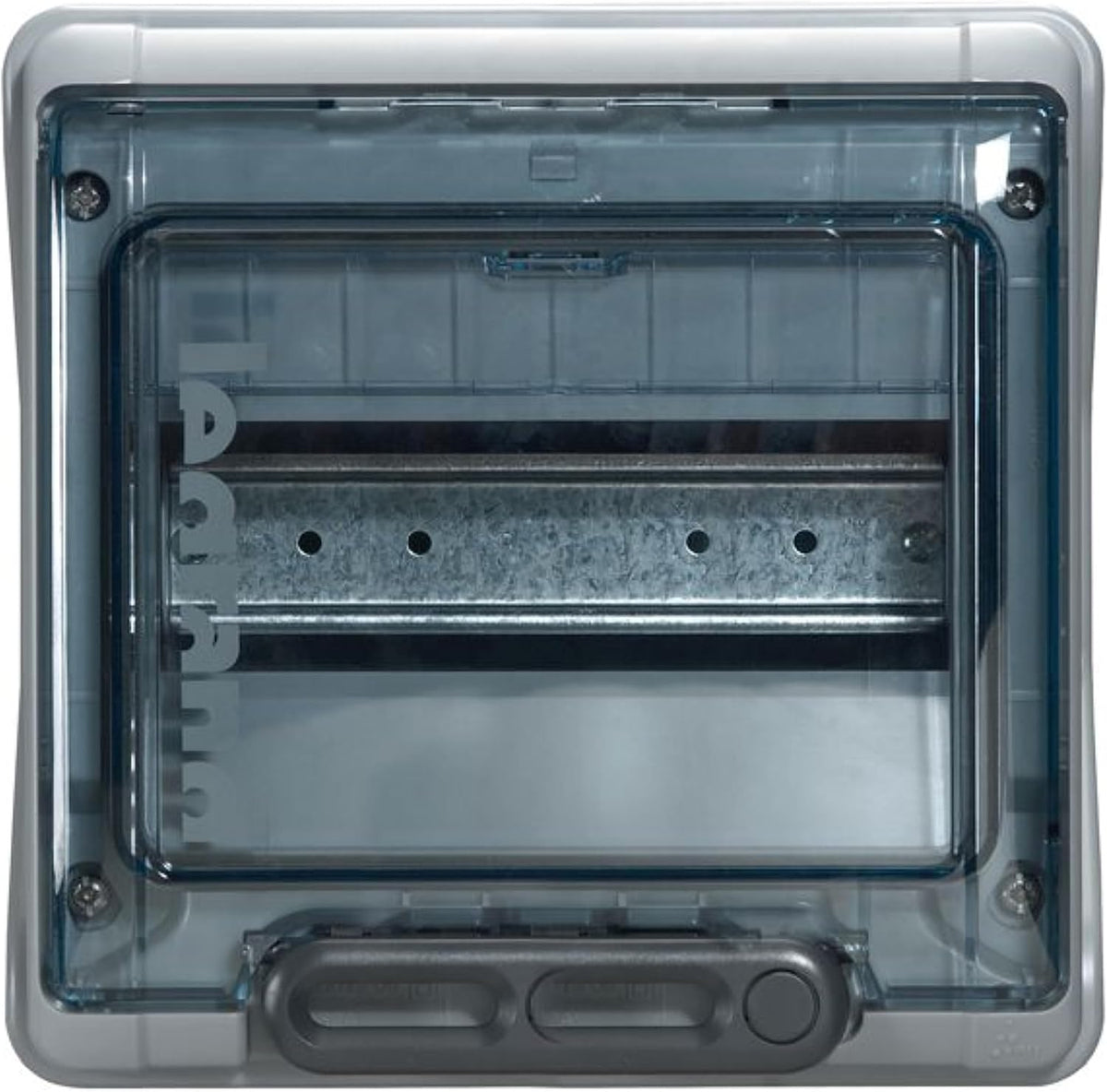

Genuine Legrand Plexo surface mounted distribution enclosure. IP65 sealed against water and dust and IK09 rated against impact, so it suits laundries, garages, workshops, plant rooms and outdoor switchboards.
Features
1 row, 8 modules
IP65 - protected against dust and low pressure water jets
IK09 - high impact resistance
Surface mounted, no recessing required
Suits wet areas, garages, workshops and external installations
What IP65 and IK09 mean
IP65 means the enclosure is fully dust tight and will handle water jetted at it from any direction - suitable outdoors and in wash down areas, though not for immersion. IK09 is an impact rating, meaning it will take a solid knock without cracking. Both matter in a garage or workshop where a board can get hit.
Sizing the enclosure
Count the modules you need, then allow room to grow. A main switch takes 2 modules, a single pole MCB takes 1 and an RCBO usually takes 2. Filling a board to capacity on day one means replacing it at the next addition.
Specifications
Brand: Legrand
Range: Plexo
Catalogue number: 601978
Type: Surface mounted distribution enclosure
Capacity: 1 row, 8 modules
IP rating: IP65
Impact rating: IK09
Installation
Switchboard work must be carried out by a licensed electrician.
Brand new, genuine Legrand stock. Fast dispatch from Sydney.
