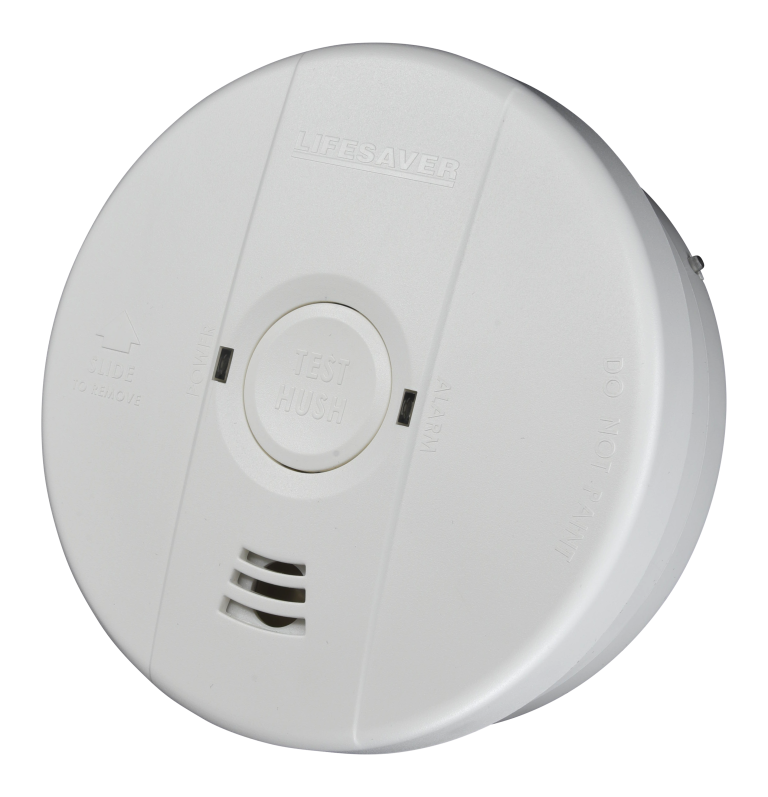

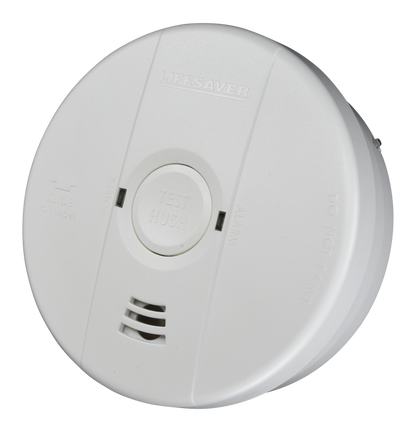

PSA Lifesaver LIF6800 Mains Powered 240V AC with 9V DC Battery Backup
PSA Lifesaver LIF6800 Mains Powered 240V AC with 9V DC Battery Backup
MODEL: LIF6800
• New design advanced photoelectric sensing technology and intelligence to reduce sensitive activations
• 240V AC with 9V battery back up
• ActivFire Certified, Approved to AS3786:2014

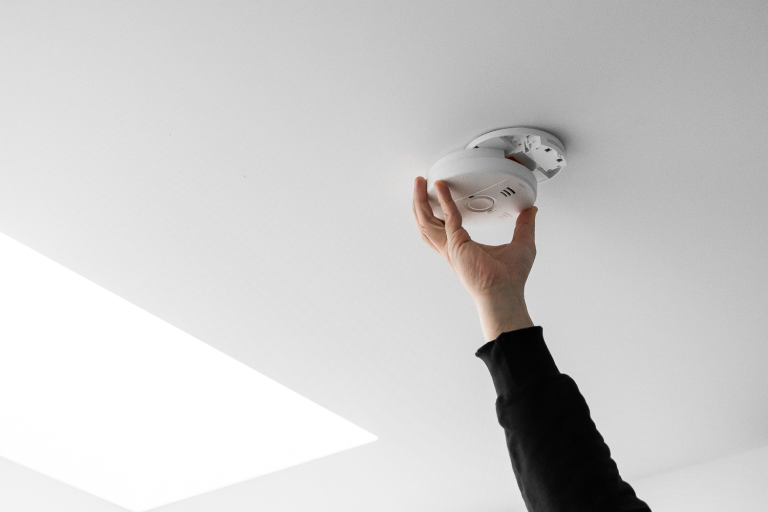

• Easy maintenance and installation with the QUICK SLIDE base
| Model |
6800 |
|---|---|
| Sensor Type |
Photoelectric – Advanced Sensor |
| Supply Voltage |
240V AC 50Hz |
| Power Consumption |
10mA max per alarm, 4mA (standby) |
| Battery Back-up |
9V battery (Alkaline supplied) |
| Interconnecting |
Interconnectable up to 24 units |
| Alarm Volume |
85dBA at 3 metres |
| Alarm Signal Pattern |
ISO8201 (T3 – Repeat 3 long beeps) |
| Temperature Range |
0˚C – 40˚C |
| Humidity Range |
Up to 93% RH (non-condensing) |
| Hush Function |
Silences alarm for 9 minutes |
| Low Battery Hush |
Silences low battery beeping for 8 hours |
| Alarm Duration |
Alarm will sound for as long as smoke is detected, then unit will automatically reset when smoke clears. |
| Alarm Indication |
Red LED flashes every second. |
| Alarm Memory |
Red LED flashes 3 times every 40 seconds.
|
| Chamber Monitoring |
3 beeps every 40 seconds. |
|---|---|
| Indicator LEDs |
Green LED – Power indicator |
| Wiring Terminal |
9V, Active, Switch, Neutral, Loop |
| Dimensions |
130mm (diameter) x 45mm (depth) |
| Approvals |
ActivFire, SAI Global, RCM, AS3786:2014 |
| Warranty |
10 years |
