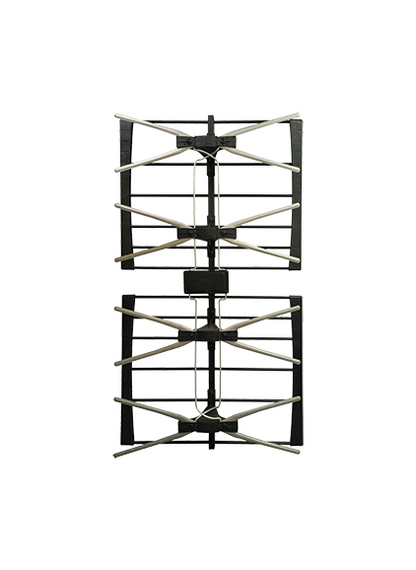

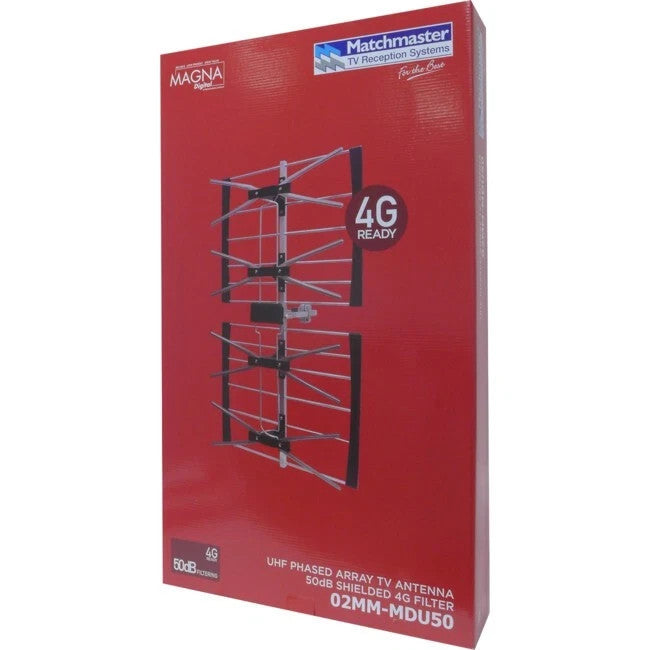

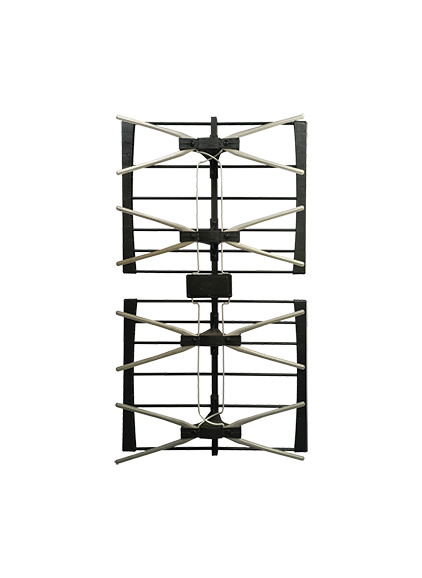

MATCHMASTER 02MM-MDU50B UHF Phased Array Antenna With 50Db 4G/5G Filter
MATCHMASTER 02MM-MDU50B UHF Phased Array Antenna With 50Db 4G/5G Filter
UHF Phased Array Digital TV Antenna (28-51) 50dB Shielded 4G/5G Filter
02MM-MDU50B
Product Summary
The 02MM-MDU50B is a high-gain UHF (Ch 28-51) phased array digital TV antenna. It features a black powder-coated rear screen and mounting assembly to blend seamlessly into the background of modern homes and buildings. The MDU50B is the ultimate choice for performance and aesthetics in one package. With a new IP66 balun case, a Dacromet finish on clamping components and thicker aluminium tube walls, the new MDU50B is superior in corrosion resistance, making it the best antenna for the harsh Australian coastal regions. Featuring a built-in 50dB screened 4G/5G LTE filter, the MDU50B is the right choice when looking for that perfect signal. Designed as a one-piece antenna for easy installation, fold the mounting arm into place, tighten and install.
Features and Benefits
- Featuring a newly designed black rear screen and mounting assembly to help blend into today's modern builds
- IP66 balun casing is perfect for use in coastal areas to help prevent moisture and salt ingress
- Receives UHF Channels 28-51 with a 694MHz low pass 4G/5G LTE filter > 50dB at 750 MHz
- Dacromet finish to all clamping components for superior corrosion resistance with new thicker aluminium tube walls for superior durability
- New T-bracket in heavy-duty aluminium alloy
- Easy to assemble with a vertical mounting option
- X elements - one piece for anti-corrosion
Specifications
| Elements | Phased Array |
|---|---|
| Channels | 28-51 |
| Frequency Range | 520-694MHz |
| Gain | 11-14dB |
| Front/Back Ratio | 17-21dB |
| Balun Type | F Type, PCB 4G/5G filtered |
