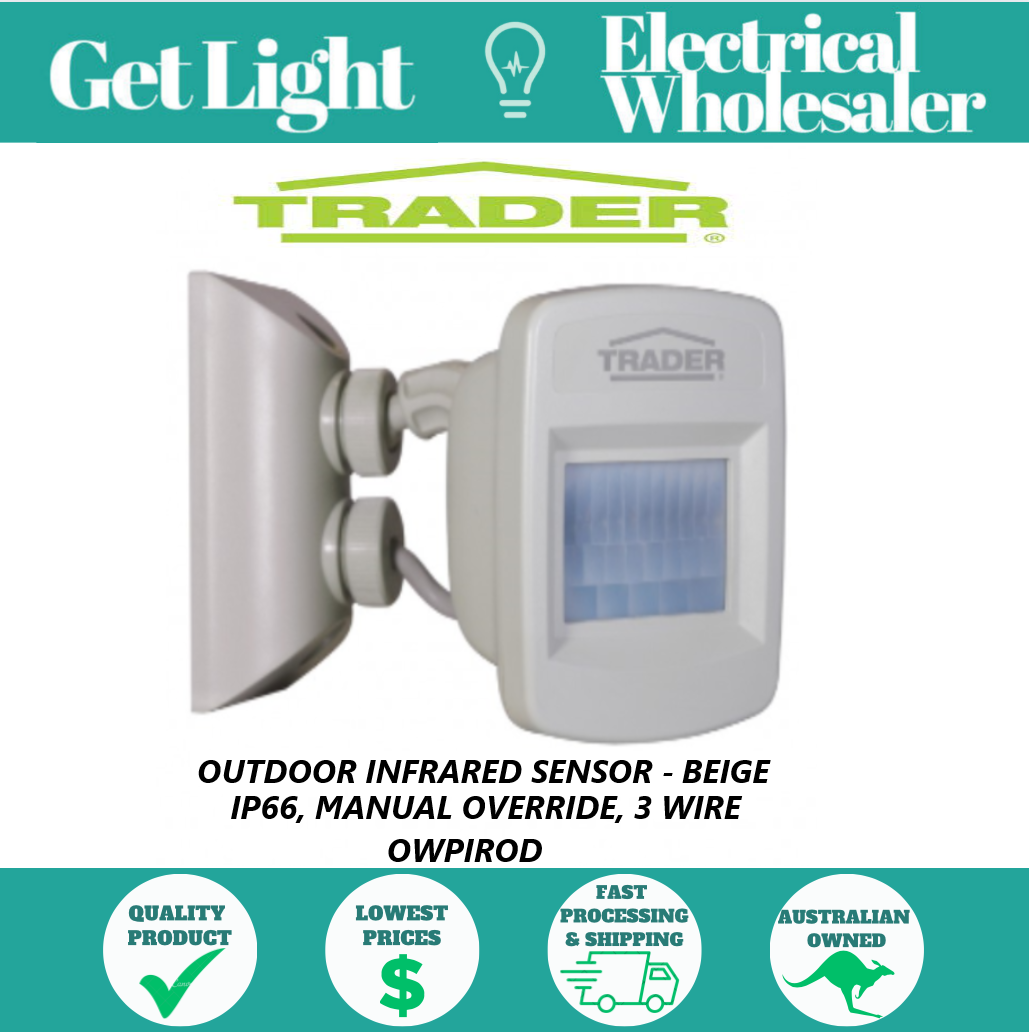

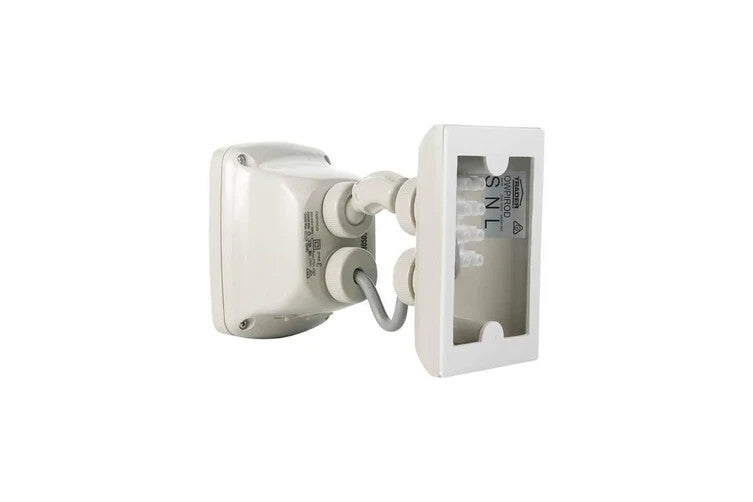

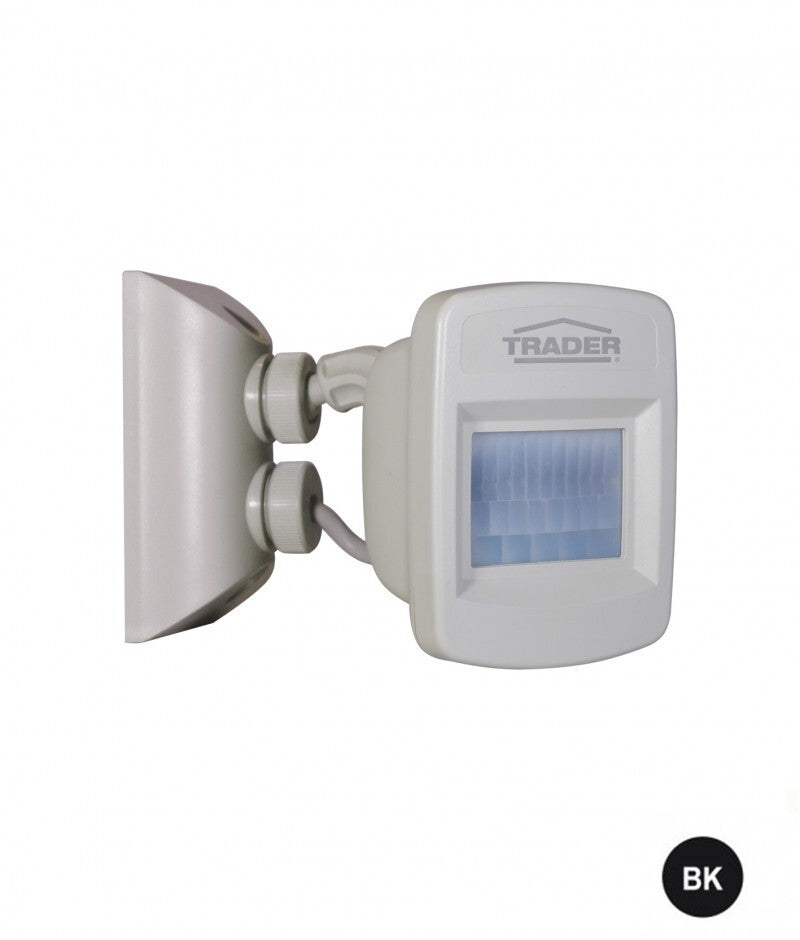

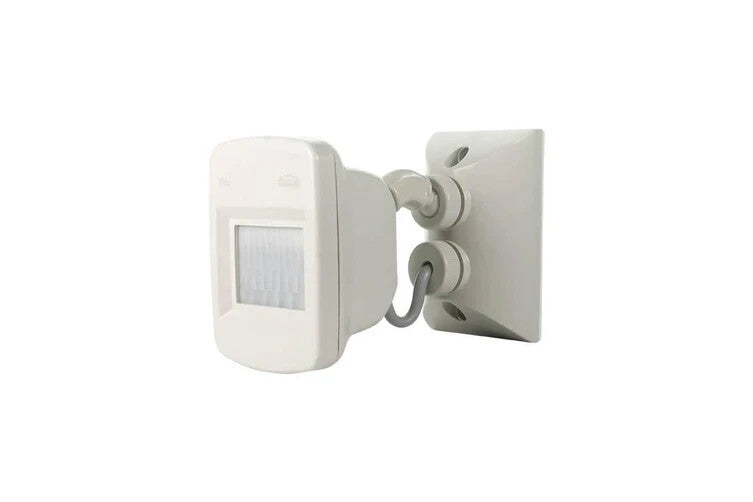

Outdoor Infrared Sensor - Atric Owl - 3 Wire - IP66 - Beige - Trader OWPIROD
Outdoor Infrared Sensor - Atric Owl - 3 Wire - IP66 - Beige - Trader OWPIROD
Regular price
$80.00 AUD
Regular price
Sale price
$80.00 AUD
Shipping calculated at checkout.
OUTDOOR INFRARED SENSOR - 3 WIRE - IP66 - BEIGE - TRADER OWPIRODBK
-
Sensor
uses Passive Infrared technology.
-
Manual
override for greater convenience.
-
110°
detection up to 18 metres.
-
Suitable
for installing on walls and ceiling both interior and exterior.
-
Fits
standard mounting blocks using 84mm centres (example: HYSMB2025).
-
3
wire design (Active, Neutral, Sensor load) for greater reliability.
-
Relay
in circuit allows for loads up to 2400W (incandescent).
-
Easy
mounting and adjustment.
-
Easy
sensing, light level and on time adjustment.
-
LED
compatible.
-
IP66
Rating.
-
Minimum
load <10W
-
Must
be installed by a licenced electrician.
- Screw caps included.
Additional Information
| Brand | GSME Trader |
|---|---|
| Range Name | Arctic Owl |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121800 |
| UOM | EA |
| Vendor Product | OWPIROD |
| Product Type | Sensors |
| Wattage | Incandescent: 2400 Watt/Inductive: 1200 Watt |
| Lux | <2 lx |
| IP Rating | IP66 |
| Response Time | 5 sec-10 min |
| Sensing Method | PIR |
| Sensing Range | 18 mtr |
| Colour | Beige |
| Sensing Beam | 110 Degree |
| Current | Incandescent: 10 Amp/Inductive: 5 Amp |
| Voltage | 220-240 Volt |
PIR Sensor, Sensing Method: PIR, Sensing Range: Upto 18 mtr, Sensing Beam: 110 deg, Response Time: 5 sec-10 min, 220-240 Volt AC, Incandescent: 10 Amp, Inductive: 5 Amp, Wattage: Incandescent: 2400 Watt, Inductive: 1200 Watt, Lux: <2 lx, IP66, Beige
