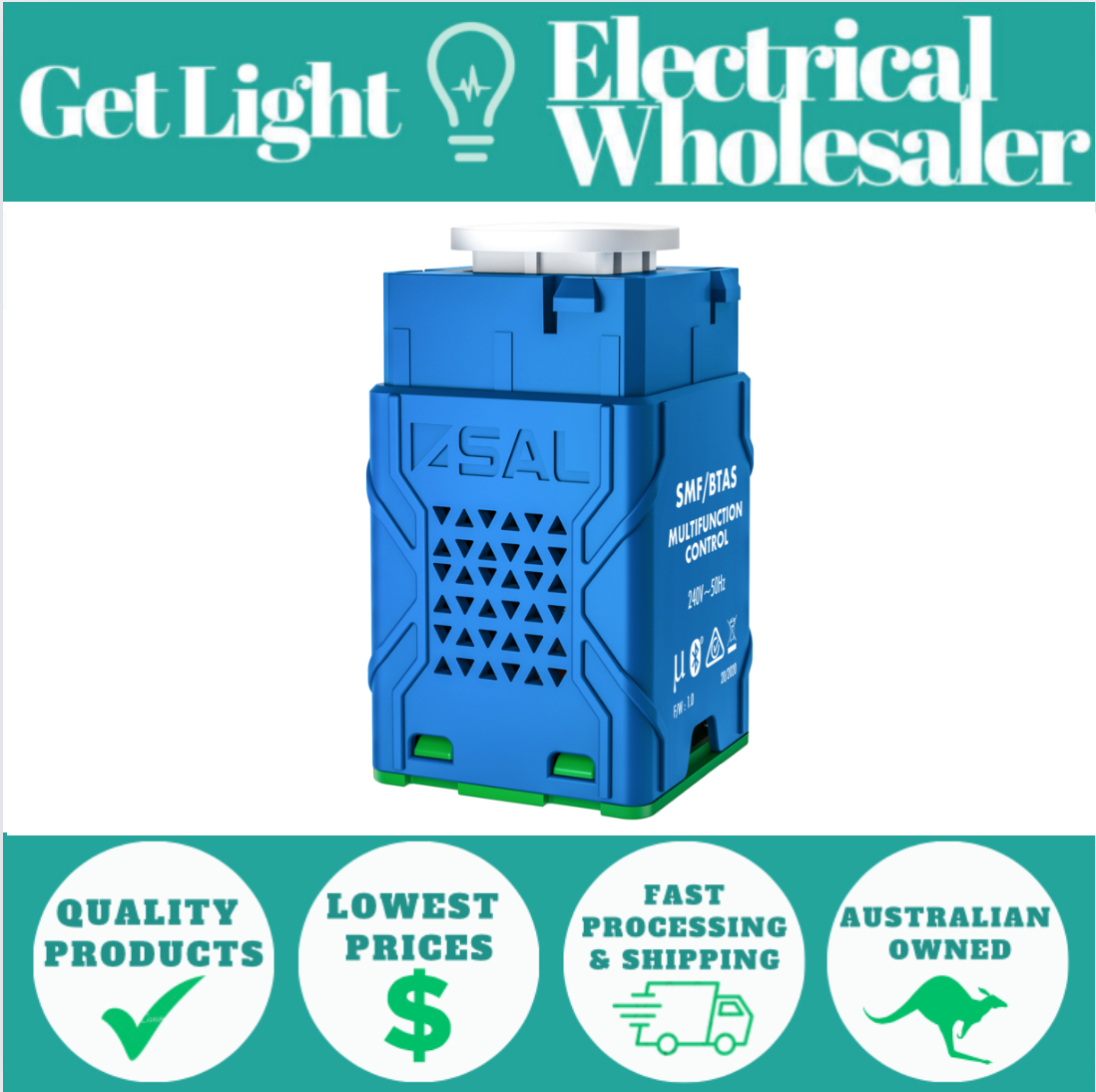

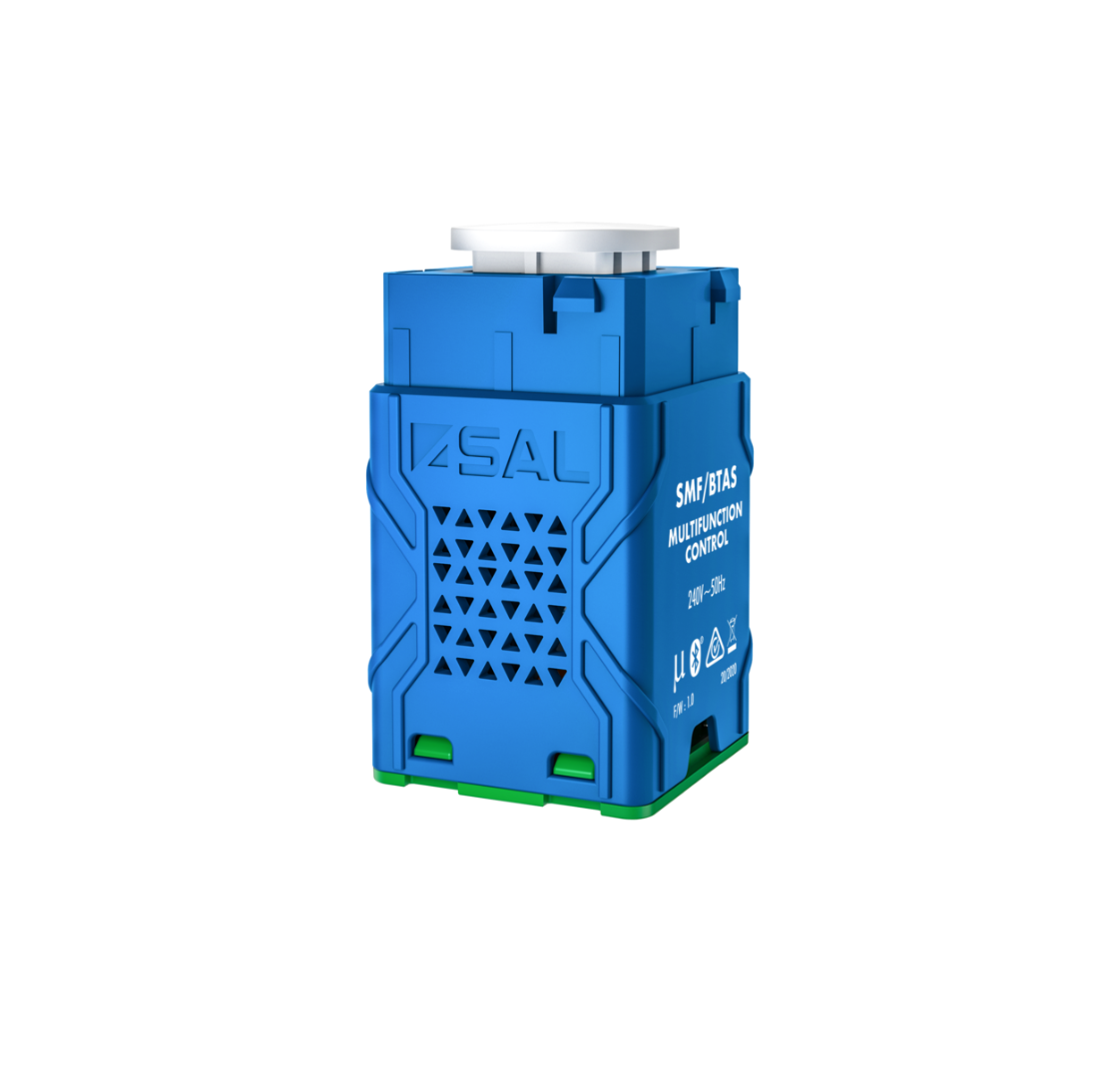

PIXIE MULTIFUNCTION CONTROL -
SMF/BTAS G3
PIXIE SECONDARY DEVICE - SMART HOME digital push button multifunction control
Application
Ideal for residential designs, commercial interior spaces requiring multiple location device control
Design Specifications
-
Digital push button control to enable multifunction switching or dimming control, simply with an active and neutral termination. All devices must be paired with a PIXIE Master device once installed, for functionality.
-
Three (3) complimentary key caps provided to suit most switch plates
-
Easy to install, dim and switch with ease, two wire termination mech.
-
Switch or dimming control is achieved only in conjunction with PIXIE Master controls.
-
Fully compatible with PIXIE and PIXIE PLUS
-
Slimline design to allow 1-6 gang configurations
Additional Information
| Brand | SAL |
|---|---|
| Range Name | Pixie |
| Standard Pack Size | 1 |
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | SMF/BTAS |
| Product Type | Controllers |
| Frequency | 50 Hz |
| Colour | White |
| Dimensions | 24mm Height x 24mm Width x 42mm Depth |
| Voltage | 240 Volt |
