Cabac 240V LED Indication Digital RCD Tester - T2712EL
Cabac 240V LED Indication Digital RCD Tester - T2712EL
Digital RCD Tester - 240V
- Residual Current Device (RCD) or ELCB trip time tester with LED indication for power, battery and mains polarity
- Simply select earth leakage resistance test value
- Displays adjustment percentage for high and low voltage
- Suitable for 10A and 30 mA RCDs. Compatible with Aust plug to 3 core banana plug adaptor TEL-EL
- CAT III 300V
ADDITIONAL INFORMATION
| BRAND | Cabac |
|---|---|
| STANDARD PACK SIZE | 1 |
| UNSPSC CLASS | 41113600 |
| UOM | EA |
| VENDOR PRODUCT | T2712EL |
| DIMENSIONS | 200mm Length x 85mm Width x 55mm Thickness |
| FREQUENCY | 50/60 Hz |
| POWER SUPPLY | 6 x AA |
| PRODUCT TYPE | Digital RCCB/RCD Tester |
| TEMPERATURE | -5 to 45 deg C |
| VOLTAGE | 240 Volt |
| CURRENT | 10 Amp-30 mA |

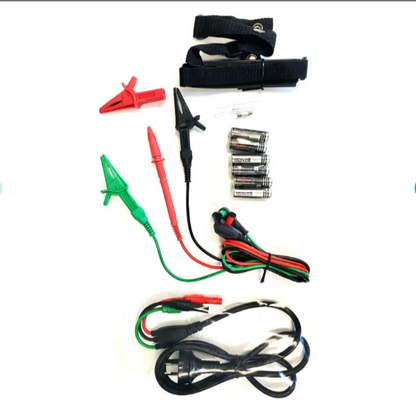

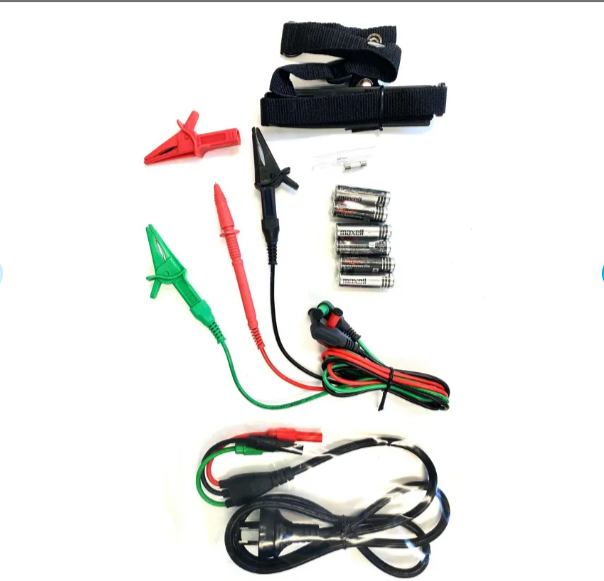

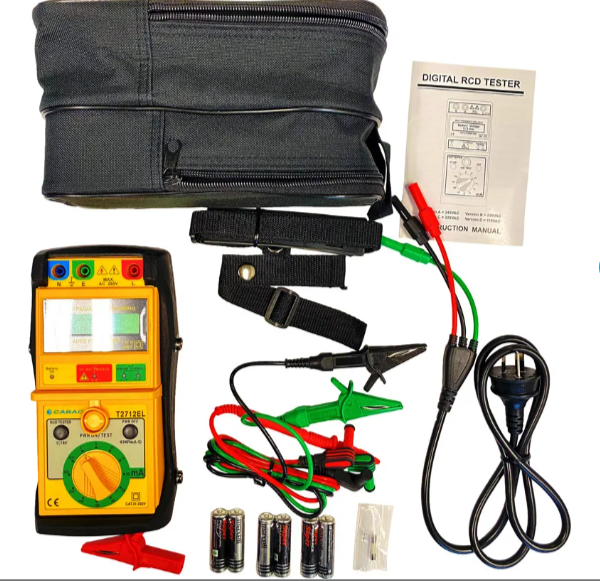

Part No. T2712EL EA QTY 1 Contents Each T2712EL is supplied
in a soft pouch with a rubber holster, shoulder strap, spare fuse, alligator
clips, 10A plug leads, test leads, batteries and instruction manual. Dimensions
L200 x W85 x T55mm Batteries 6 x AA batteries (included) Weight 540g Feature
Range Accuracy Voltage 240V ±10%, 50Hz, 60Hz ±2% +1 Trip Settings
3/5/10/15/20/30/50/100 150/250/300/500mA Disconnection Time 0 - 2.999 seconds ±
2ms Time Resolution 1mS Phase Start Selection 0° & 180° Operating
Temperature -5° to 45°C
• Coloured coded terminals
• CAT III 600V • Microprocessor driven menu
• Incorrect wiring warning indication
• Battery and power on indicator
• Test angle selection
• Show % deviation
• Compact rugged boot for increased

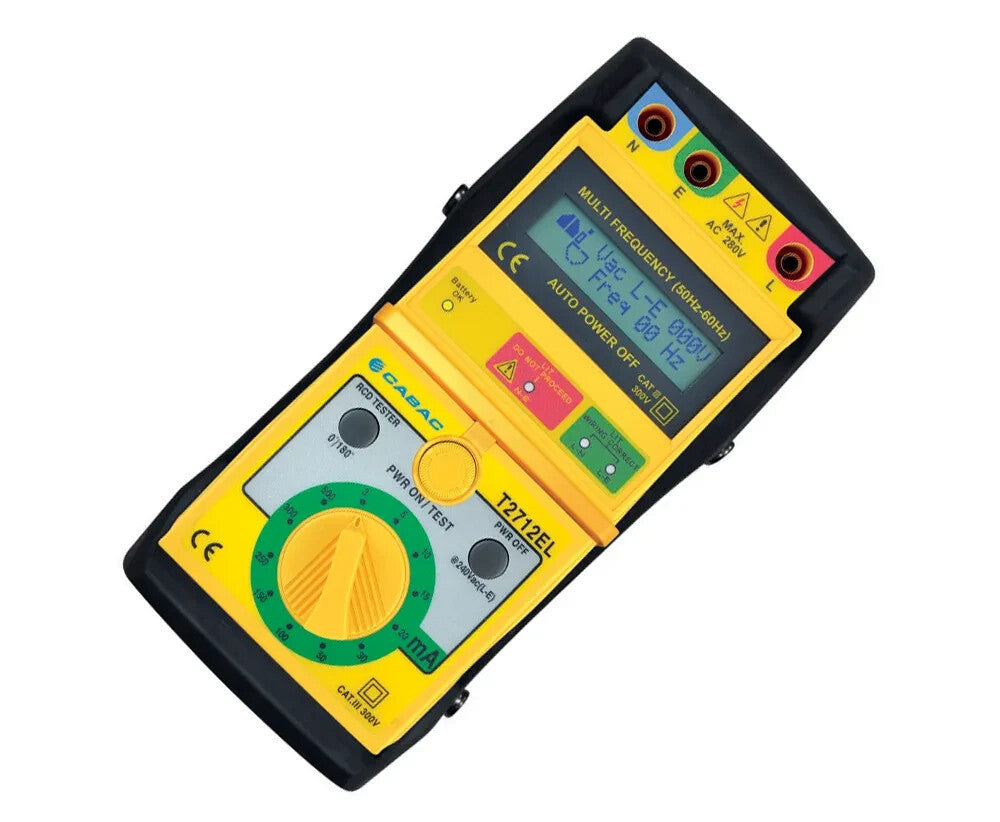

DIGITAL RCD TESTER -
240V CAT III 600V The T2712EL is a compact, easy to use RCD tester that is
suitable for installation testing to AS/ NZS3017 and AS/NZS3760.
The rotary selector switch has 12 ranges to select the
tripping current. It features a battery and power "on" indicating LED and
indicating LEDs for the correct and incorrect wiring polarity e.g. power
outlet. There is a button to select the starting angle of the fault and a Power
"on/test" button.
The terminals are colour coded for easy reference. This RCD
tester can be used on generator circuits. The RCD tester will display the
starting phase angle, the trip time and the percentage adjustment for voltage
change from 240V ac.
• Displays AC
frequency
• Digital display-
indicates phase angle, time to trip, % adjustment for voltage and change to
240Vac • Correct wiring indication
• On/Off power button
• Selector switch for current leakage 3 to 500Ma
• Suitable to use on
generators • Designed for testing AS/NZS3017 + AS3000 + AS/NZS3760
