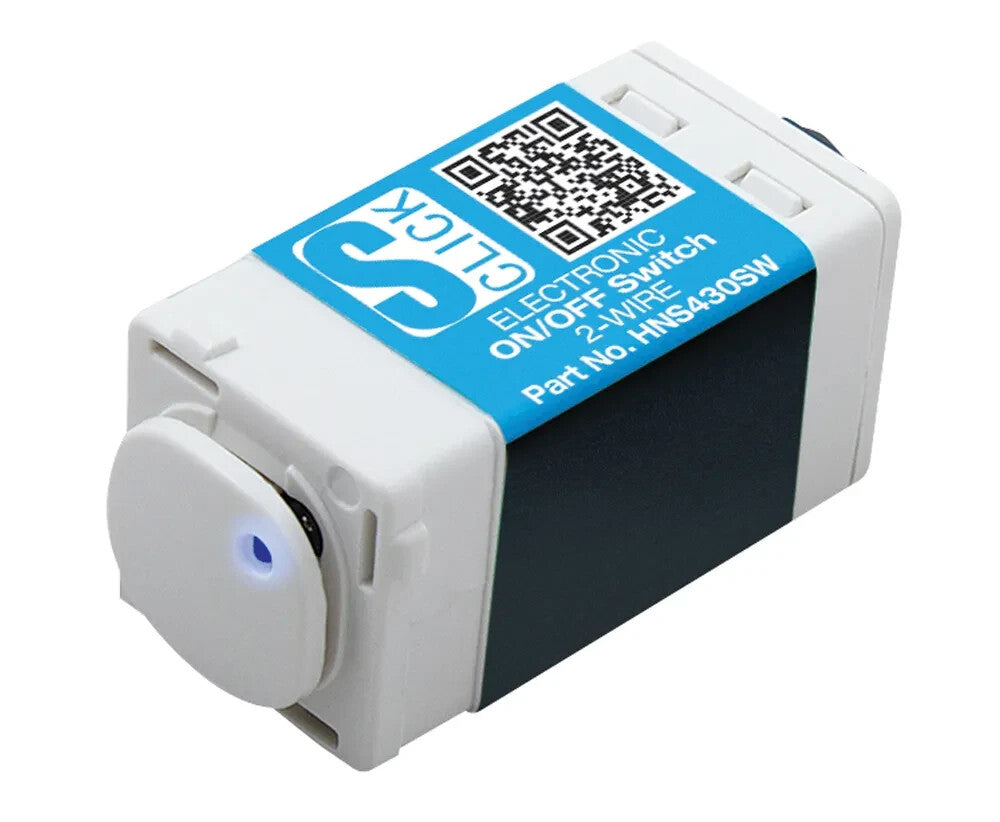

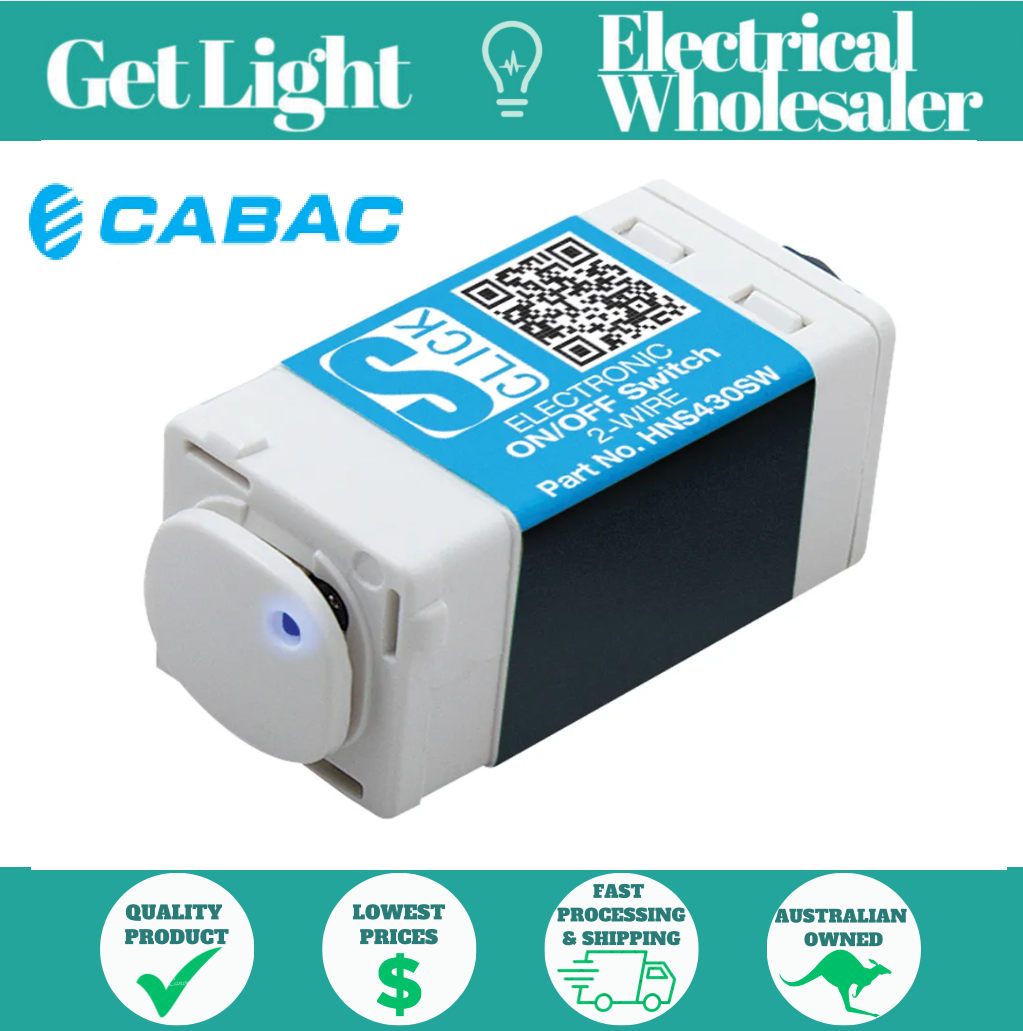

CABAC S-Click Electronic On / Off Mech Switch 2 Wire 240V Suits Clipsal HNS430SW
CABAC S-Click Electronic On / Off Mech Switch 2 Wire 240V Suits Clipsal HNS430SW
Electronic On Off Mech SW 2-W 240V 1.7A
- Electronic 'on/off' light switch with LED indicator
- Quick tap turn 'on' - quick tap turn 'off'
- Can be retrofitted to most installed lights
Product Description
The S-Click HNS430SW is perfectly suited to switching domestic lighting and can be retrofitted to most installed lights. This simple 2-wire ON/OFF mech is designed with a soft touch push button and blue LED to indicate device status.
Applications and Compatibility
Suggested uses: Lights, Heaters, Garden Lighting
The HNS430SW is compatible with HPM and Clipsal Style wall plates. Matching buttons are included for seamless integration with these popular designs.
Multi-way switching is enabled using a mains rated momentary action switches wired across the Active and Load connections. Suitable switches include the HPM EM870K or Clipsal 681M20P.
Operating Conditions
Operating Voltage: 230 - 240V a.c. 50Hz
Operating Temperature: 0 to +50 ªC
Compliance Standard: CISPR15, AS/NZS 3100, AS/NZS 60669.2.1
Maximum Load: 400VA
Minimum Load: 10VA
Maximum Current capacity: 1.7A
Terminals: Screw Terminals suit 0.5mm2 to 1.5mm2 stranded (bootlace terminal recommended)
The HNS430SW is to be installed as part of a fixed wire electrical installation. By law such installations must be made by an electrical contractor or similarly qualified person. For important safety warnings and operating instructions, refer to the product user manual.
