Cabac S-Click HNS220TD Advanced Wall Timer Switch 10A 230V - Pool Pump, Exhaust Fan, Heater Timer

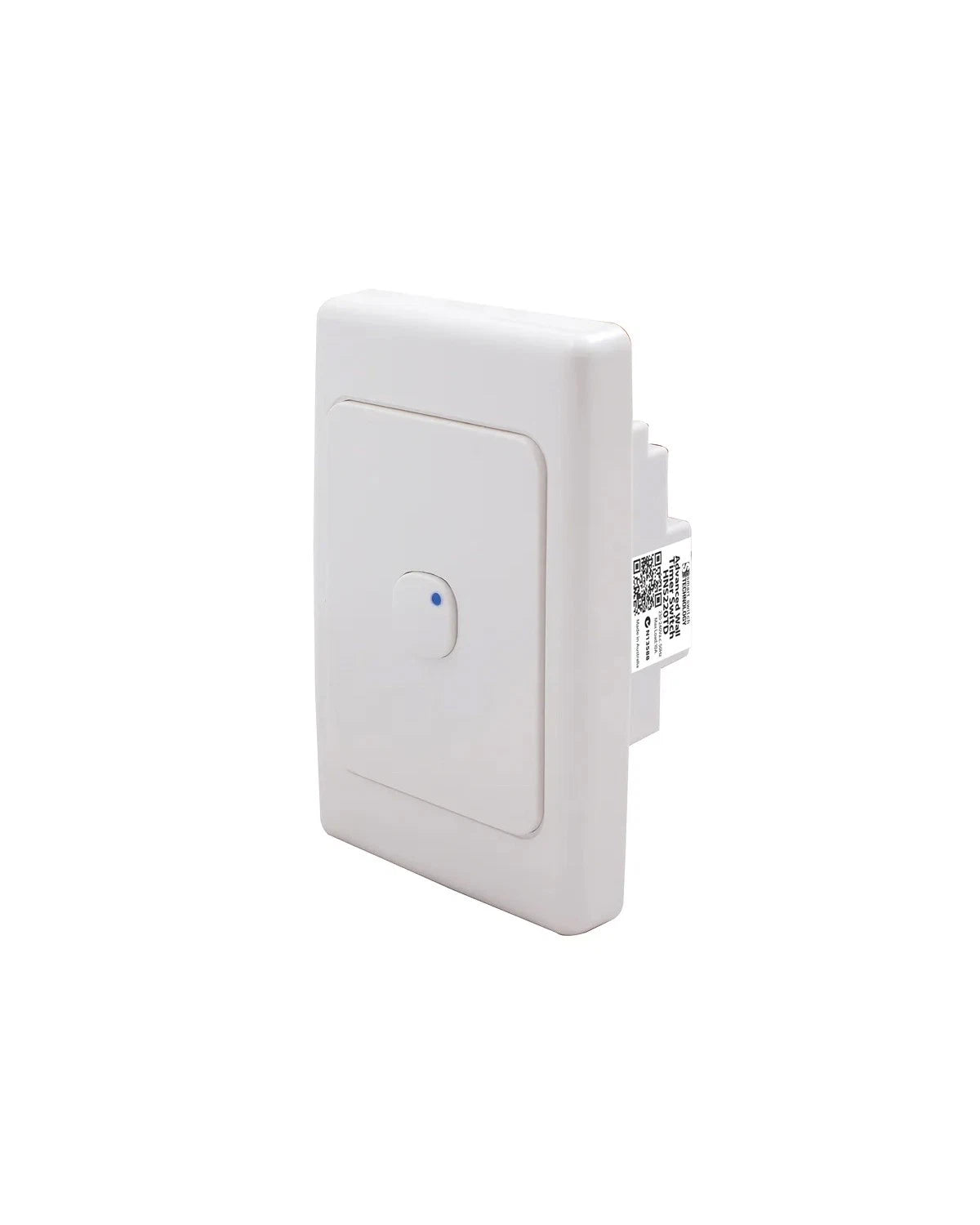

Cabac S-Click HNS220TD Advanced Wall Timer Switch — 230VAC, 10A

Genuine Cabac product, brand new. Designed and engineered in Australia.

What it does

A high-current wall timer for anything that needs to run for a set period then shut itself off. Adjustable time-out from 10 seconds to 15 hours, programmed with DIP switches. Suits pool and spa pumps, exhaust fans, heaters, commercial lighting and car park lighting.

Two modes of operation

A quick tap starts the countdown and the timer switches off automatically when the period elapses. Tap again at any point to turn it off early. Hold for two seconds while running and the countdown restarts, extending the run time.

Replacing a Clipsal timer?

This is an improved direct replacement for the Clipsal 2031VETR3 and 31VETR3 — it switches 8A of motor load and adds restart timer operation. Fits a standard one-gang Australian face plate and works with Clipsal or HPM wall plates. Ideal for retrofitting existing installations.

Specifications

• Operating voltage: 230–240V a.c. 50Hz
• Maximum load: 10AX
• Motor load: 8A
• Timer range: 10 seconds to 15 hours
• Timer accuracy: ±0.5%
• Operating temperature: 0 to +50°C
• Certified to AS/NZS 3100, AS/NZS 60669.2.1 and CISPR15
• Approval number: N13588
• Screw terminals — 10mm recommended strip length

Configurable features

• Switch mode selectable — power ON during timing (normally open) or OFF during timing (normally closed)
• Blue LED status indicator, configurable on or off in either state
• LED blinks every 5 seconds while timing, then flashes during the final 10 seconds before time-out
• Multi-way switching capable using mains-rated momentary action switches

Load compatibility

Incandescent, 240V halogen, fluorescent tube (electronic and iron core ballast), compact fluorescent, LED, electronic transformers, wirewound transformers, fan motors and heating elements.

What's in the box

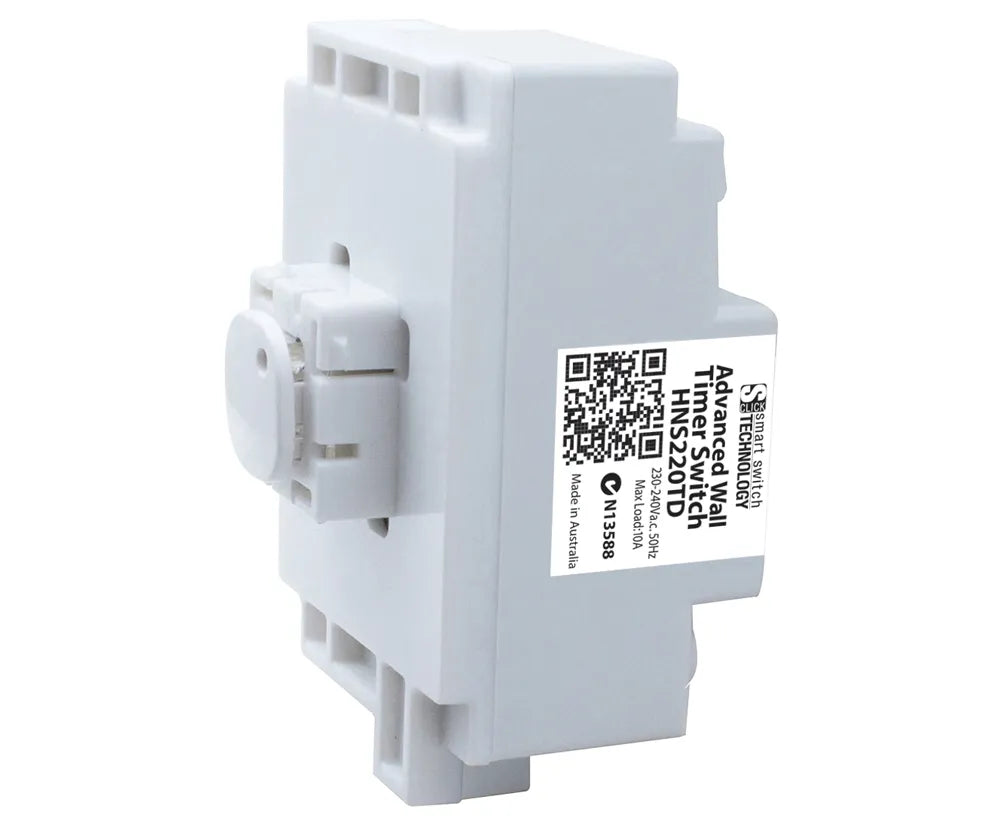

• 1 × Advanced Wall Timer Switch mechanism
• 1 × Wall plate
• 1 × HPM style push button
• 1 × Clipsal style push button
• 1 × Instruction manual

Important

This product forms part of a fixed wiring installation and by law must be installed by a licensed electrical contractor. Mains power must be isolated at the circuit breaker before installation.
