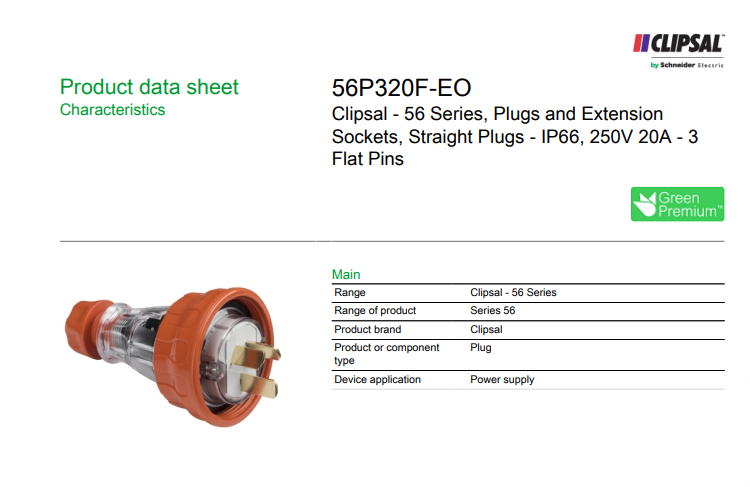

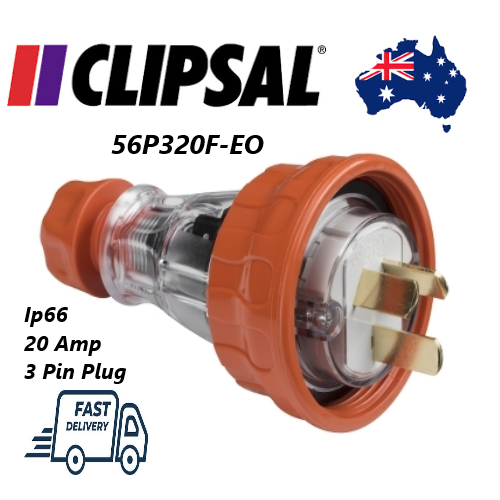

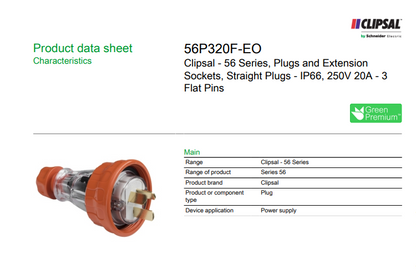

Clipsal - 56 Series, Plugs and Extension Sockets, Straight Plugs - IP66, 250V 20A - 3 Flat Pins Electric Orange Item Number: 56P320F-EO

Design

Range

Clipsal - 56 Series

Range of product

Series 56

Product brand

Clipsal

Product or component type

plug

Device application

power supply

Colour

orange (RAL 2004)

Market segment

industry|utility|small commercial

Sustainable offer status

Green Premium product

Physical

[in] rated current

20 A

[ue] rated operational voltage

250 V AC 50 Hz conforming to EN 60309-2

Outlet standard

industrial

Connections - terminals

screw terminal 1-6 mm²

Wire stripping length

45 mm|12 mm

Cable entry

cable gland

Net weight

0.3 kg

Height

67 mm

Width

67 mm

Depth

112.5 mm

Standards

AS/NZS 3123

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP121020EN

Circularity profile

N/A

Material

Material

plastic

Material

polycarbonate: housing

Contacts material

pins: brass
