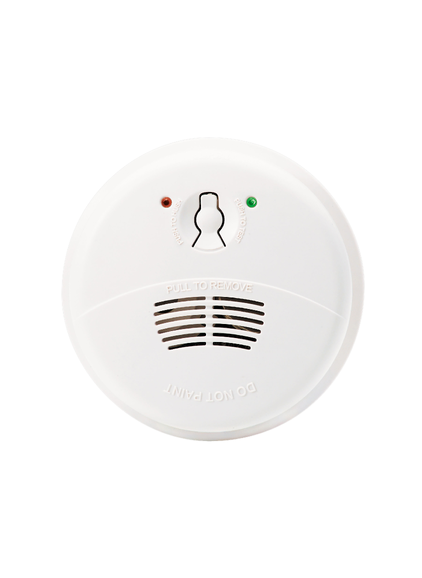

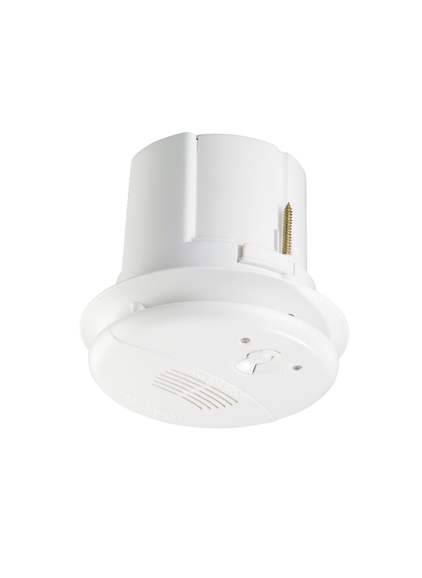

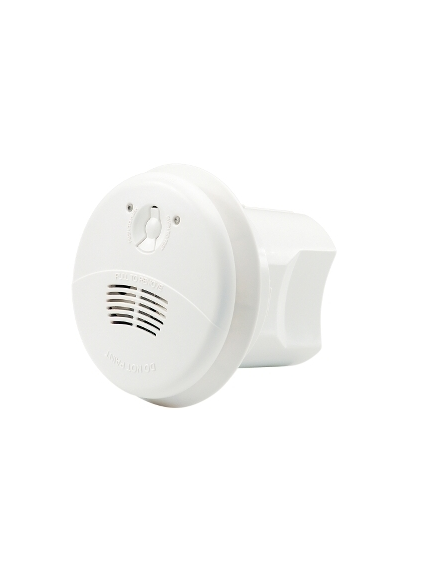

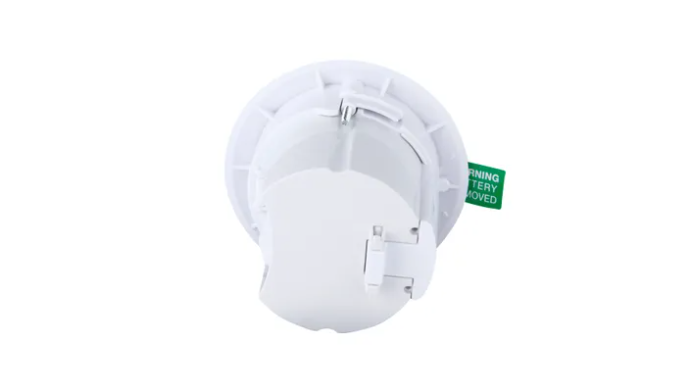

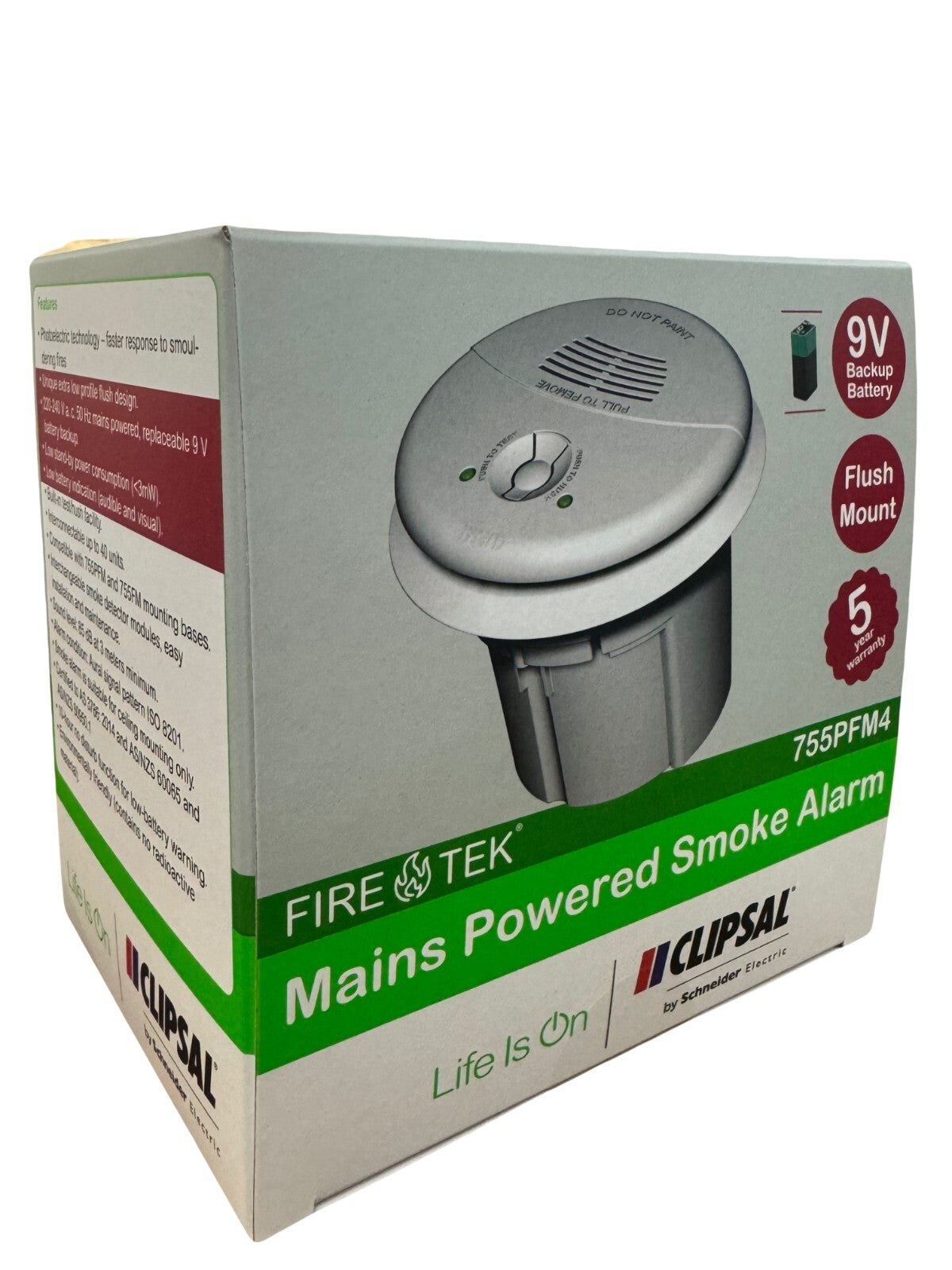

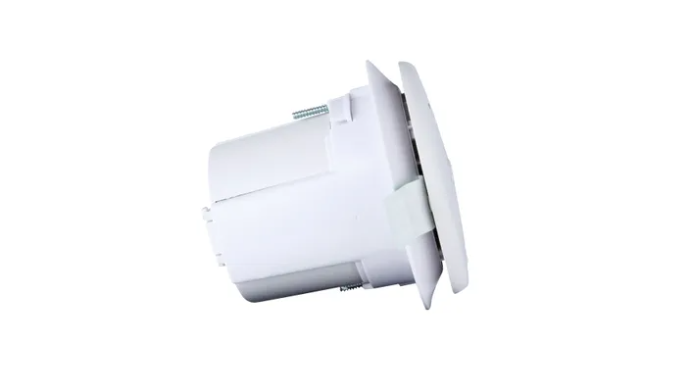

755PFM4 is a photoelectric flush mount smoke alarm that can be used as a single mains powered battery backed alarm or can be interconnected with other 755 series smoke alarms. The stylish design is extremely low profile and unobtrusive. It caters for fast installs with 90mm cut out & extra large terminals.
Smoke Alarm, 220-240 Volt AC, 13-40 mA, 50 Hz, 9 Volt DC 6LR61 Alkaline, Button (Test/Hush) Control, Photoelectric Sensor, Coverage: Up to 40 Device, 85 dBA at 3mtr, Screw Terminal, 0-95% RH, Ceiling Flush, Polycarbonate, 0-45 deg C, 108mm Dia x 102.6mm D
ADDITIONAL INFORMATION
Additional Information
|
BRAND
|
Clipsal
|
|
STANDARD PACK SIZE
|
5
|
|
UNSPSC CLASS
|
46191500
|
|
UOM
|
EA
|
|
VENDOR PRODUCT
|
755PFM4
|
|
BATTERY TYPE
|
Alkaline Batteries
|
|
CONTROL TYPE
|
Button (Test/Hush)
|
|
COVERAGE
|
Up to 40 Devices
|
|
DIMENSIONS
|
108mm Dia x 102.6mm D
|
|
FREQUENCY
|
50 Hz
|
|
MOUNTING METHOD
|
Ceiling Flush
|
|
MATERIAL
|
Polycarbonate
|
|
HUMIDITY
|
0-95% RH
|
|
PRODUCT TYPE
|
Smoke Alarms
|
|
SENSOR TYPE
|
Photoelectric
|
|
TEMPERATURE
|
0-45 deg C
|
|
SOUND LEVEL
|
85 dBA at 3mtr
|
|
VOLTAGE
|
220-240 Volt AC
|
|
TERMINAL TYPE
|
Screw
|
|
CURRENT
|
13-40 mA
|
