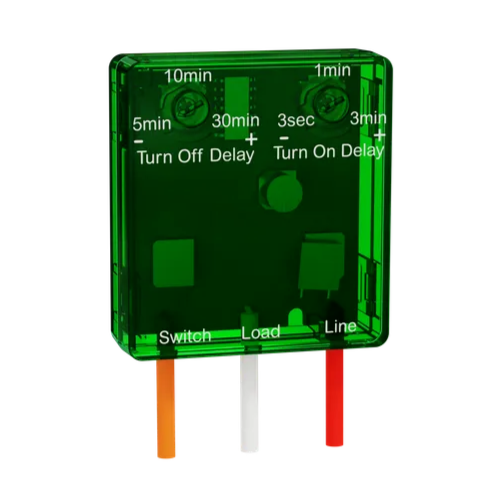

Standard Series Run On timer Clipsal, 1A, with selectable Turn ON and Turn OFF delays, translucent green |
Item Number: 31ROFT

Run On Timer with selectable turn on and turn off delays

Allows exhaust fan to continue to run for a period of time after turning off light switch so all steam is removed

Designed to be easily installed in wall cavity behind wall plate with a standard switch

Timer does not require a neutral connection

Allows exhaust fan to run for 5, 10, or 30 minutes after turning off light switch

Environmental performance of the produc

t Learn more

Designed for added convenience and to help save energy, this Clipsal Standard Series run on a timer that has selectable turn ON and turn OFF delays. When used alongside an exhaust fan and light switch, this device allows the exhaust fan to continue running even after the light switch is turned off. The selectable delay turns off the exhaust fan 5, 10, or 30 minutes after the light is switched off. You can also determine when the turn off delay is triggered, be it 3 sec, 1 min or 3 mins. The device has a small timer that is designed to sit behind the wall plate to easily comply with building regulations, and is fixed using screws. This product is designed for bathrooms that lack natural ventilation, such as those found in apartments and office buildings. The rated operating voltage is 230/240V at 50Hz and rated current 1A. The load handling of the motor is 2.5W to 240W. The dimensions of the product are (W) 41mm x (H) 40mm x (D) 12mm and the weight is 17g. The color of this device is translucent green. It is made of plastic material. The ambient air temperature for operation is from 0°C up to +50°C. It reaches IP30 degree of protection. The control of the exhaust fan run on time is based on the lighting switch status. It also has a small, compact design for easier installation. This device is compliant with AS/NZS 60335.1.2020+A1 and AS/NZS 60335.2.80.2016+A1+A2 standards.

Read less

Specifications

Main

Product or component type	Run on timer
Product brand	Clipsal
Range of product	Standard Series
Device presentation	Mechanism
Colour tint	Translucent green
Range	Standard Series

Complementary

Device mounting	Flush
Material	Plastic
Surface finish	Glossy
Autonomy	5 minutes
[Ue] rated operational voltage	230/240 V AC
Network frequency	50 Hz
Rated current	1 A
Fixing mode	By screws
Main colour tint	Translucent green
Depth	12 mm
Width	41 mm
Height	40 mm
IP degree of protection	IP30
Net weight	17 g
