Daikin BRC1E63 Wired Remote Control - Wall Controller for Ducted Air Conditioning

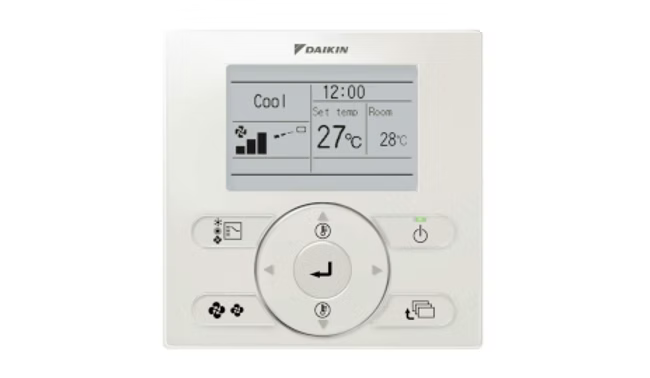

Daikin BRC1E63 Wired Remote Controller

Genuine Daikin wall-mounted controller for ducted and multi-split air conditioning systems. Use it to replace a failed or damaged controller, or to add a second control point in another part of the house. Hard-wired - no batteries, no pairing and no programming required.

Features

• Large backlit LCD display, easy to read day or night
• Cool, Heat, Fan, Dry and Auto modes
• Temperature, fan speed and airflow control
• Weekly schedule timer - program up to 5 actions per day
• Holiday function - disable schedules on chosen days
• Set temperature limit - cap the heating and cooling range to cut energy use
• Programmable off timer - 30 to 180 minutes in 10 minute steps
• Simple navigation pad with centre Enter button

Compatibility

• Ducted systems: FDYA(N), FDYQ(N), FBA and FBQ series
• Multi systems: FFQ-B, FXSQ-PA, FXDYQ-MA and FXMQ-P series
• Also commonly fitted as a replacement for the older BRC1C61

Not sure whether it suits your system? Message us with your indoor unit model number before ordering and we will confirm it for you.

Want Wi-Fi control as well?

The BRC1E63 is not Wi-Fi enabled on its own, but it works alongside the Daikin Airbase BRP15B61 adaptor to give you phone and tablet control of the same system.

Note: Daikin systems support a maximum of two controllers. If you are adding both a wall controller and a Wi-Fi adaptor, count them together against that limit.

Installation

Run the communication wiring from the indoor unit to the terminals on the controller's mounting plate, fix the plate to the wall, then clip the controller into place.

Mount it centrally in the main living area, away from direct sunlight, heat sources and draughts - anything that affects the air around the unit will throw out the room temperature reading.

Always isolate power before wiring. Installation should be carried out by a qualified HVAC technician or licensed electrician.

In the box

• 1 x Daikin BRC1E63 Wired Remote Controller
• Mounting hardware

Specifications

• Brand: Daikin
• Model / Part number: BRC1E63
• Type: Wired wall-mounted remote controller
• Display: Backlit LCD
• Colour: White
• Power: Hard-wired, no batteries required

Brand new, genuine Daikin stock. Fast dispatch from Sydney.
