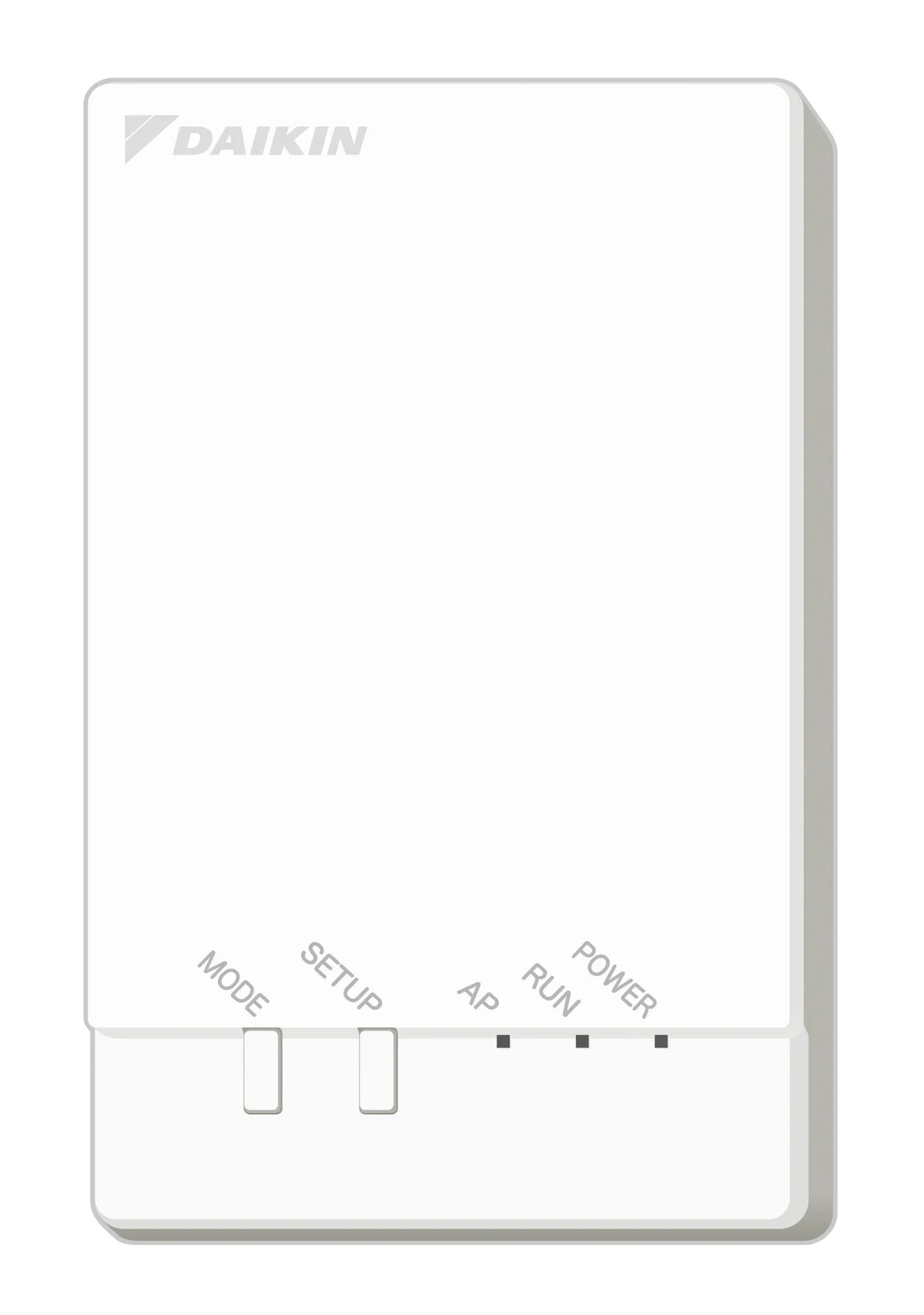

Daikin BRP15B61 Airbase WiFi Controller - Wireless LAN Adaptor for Ducted Air Conditioning

Daikin Airbase BRP15B61 Wireless LAN Connecting Adaptor

Genuine Daikin accessory. Control your Daikin ducted or SkyAir cassette air conditioning system from your phone or tablet, anywhere you have an internet connection. Replaces the discontinued Daikin SkyFi.

What it does

• Turn your system on or off and set the temperature before you get home
• Adjust mode, fan speed and temperature remotely
• On/off timer scheduling to suit your routine
• Control up to 10 systems from the one app
• Zone control when paired with a Daikin BRC24Z4 or BRC24Z8 zone controller
• Free Daikin Airbase app for iOS and Android
• Check on the system while you are out of the house

Important - check this before you order

Daikin systems support a maximum of two controllers. The Airbase counts as a controller. If your system already has two controllers connected - for example one upstairs and one downstairs - you cannot add this unit unless one of the existing controllers is removed first.

Not sure whether yours will work? Message us with your indoor unit model number before ordering and we will check it for you.

Compatibility

• Daikin ducted systems manufactured from 2010 onwards
• Many Daikin ducted heat pumps manufactured after 2003
• Indoor unit models: FDYA(N), FDYQ(N)-D(L), FBA-B(A), FCA-C(A), FFA-A2, FHA-B(A), FFA-B(A), FXDQ-P(N)D, FXDQ-T, FXDYQ-MA, FXSQ-PA, FXMQ-PA, FXMQ-P
• Wired wall controllers: BRC1E62, BRC1E63, BRC24(230)Z4(8)A

Installation

Supplied with a 20m communications cable that connects to the P1 and P2 terminals in the indoor unit electrical box. These run in parallel with the two wires going to the wall controller or zone control box. There is no polarity, so either wire can go to either terminal.

Mount the adaptor within 30m of your Wi-Fi router, with clear line of sight where possible, for the best signal.

Always isolate power before installing. Any work inside the indoor unit electrical box should be carried out by a licensed technician.

Setting up the app

Download the free Daikin Airbase app from the App Store or Google Play. The SSID and KEY needed to pair the adaptor are printed on the side of the unit - write these down before you install it, as they can be hard to reach once mounted.

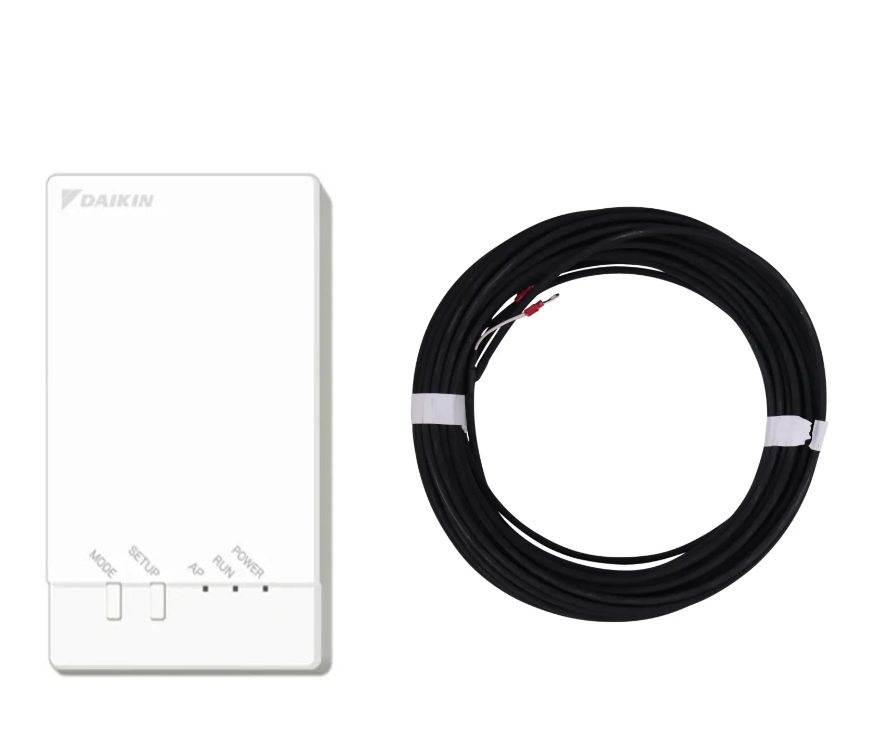

In the box

• 1 x Daikin BRP15B61 Wireless LAN Connecting Adaptor
• 1 x 20m communications cable

Specifications

• Brand: Daikin
• Model / Part number: BRP15B61
• Type: Wireless LAN connecting adaptor
• App: Daikin Airbase (iOS and Android)
• Cable supplied: 20m
• Terminals: P1 / P2, no polarity
• Max systems per app: 10

Brand new, genuine Daikin stock. Fast dispatch from Sydney.
