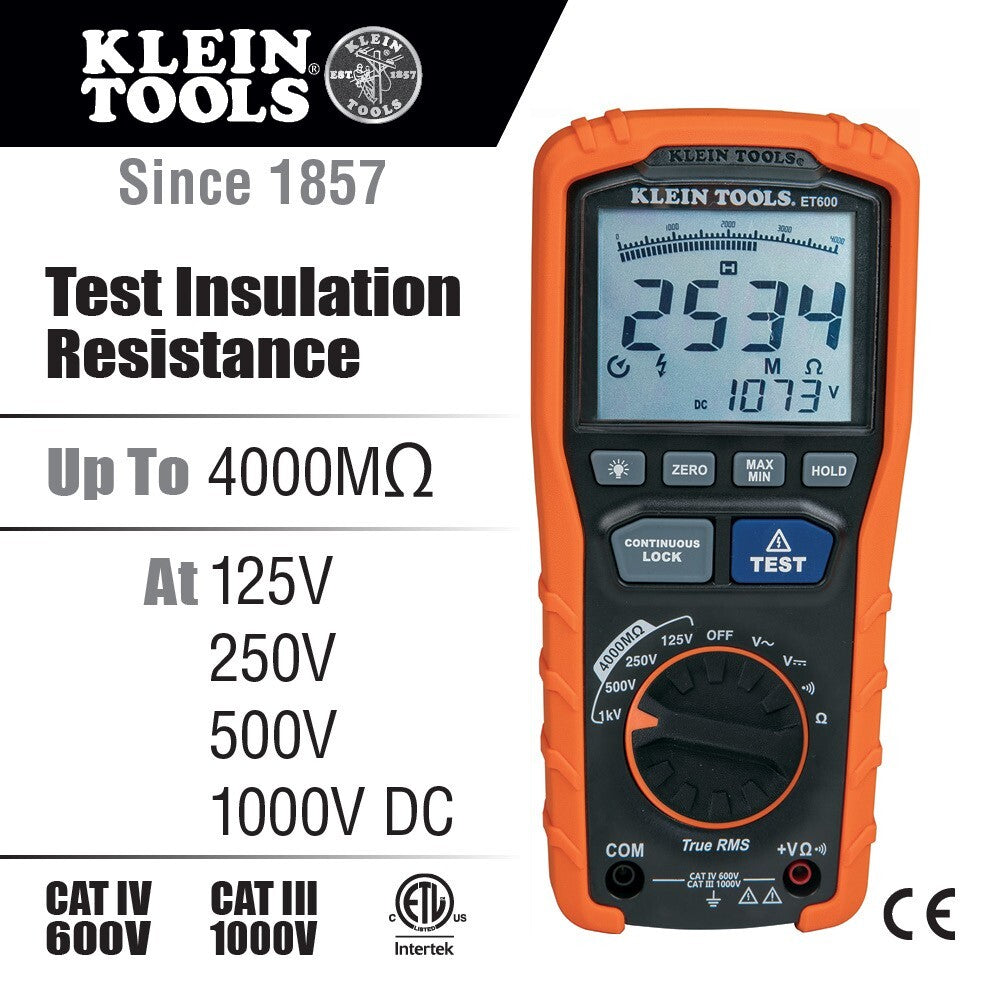

Voltage Tester tests insulation resistance up to 4000MΩ at 125V, 250V, 500V and 1000V DC

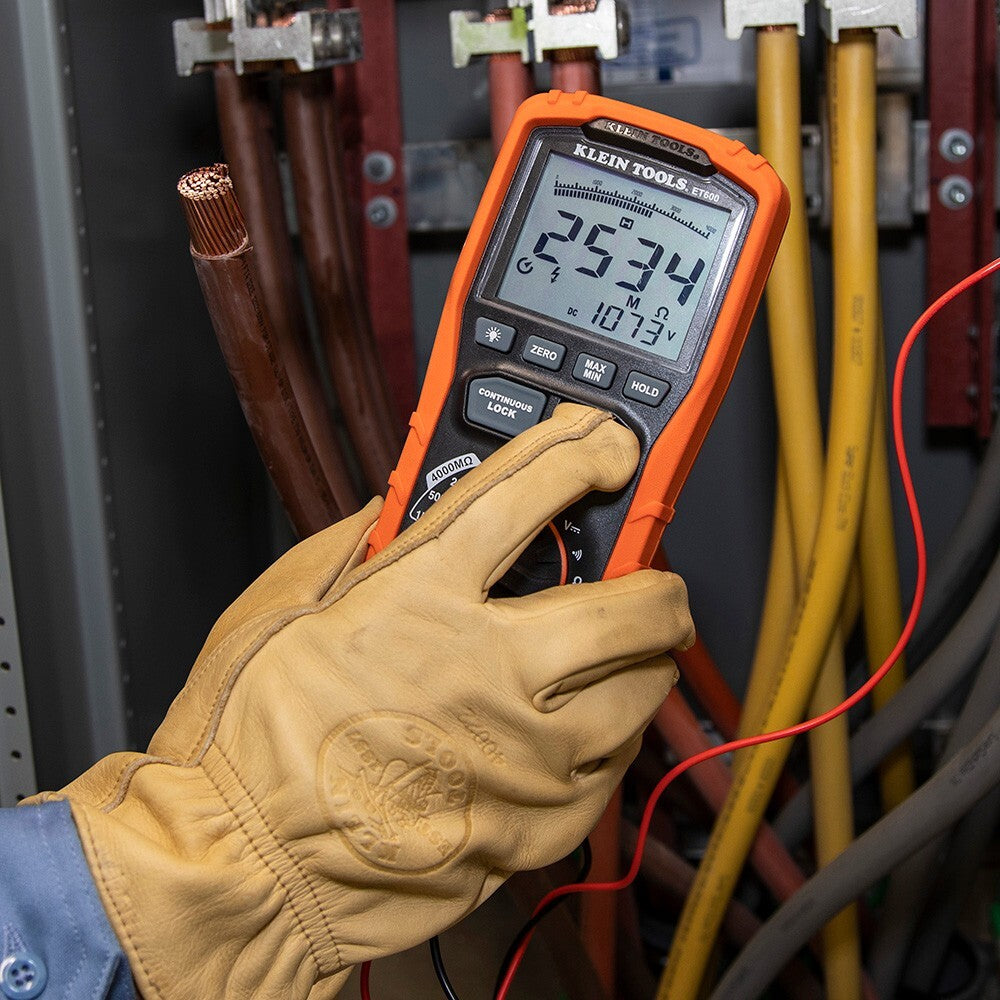

Megohmmeter with test and lock buttons for simple insulation testing
Warning alarm and high voltage icon for detection of voltage

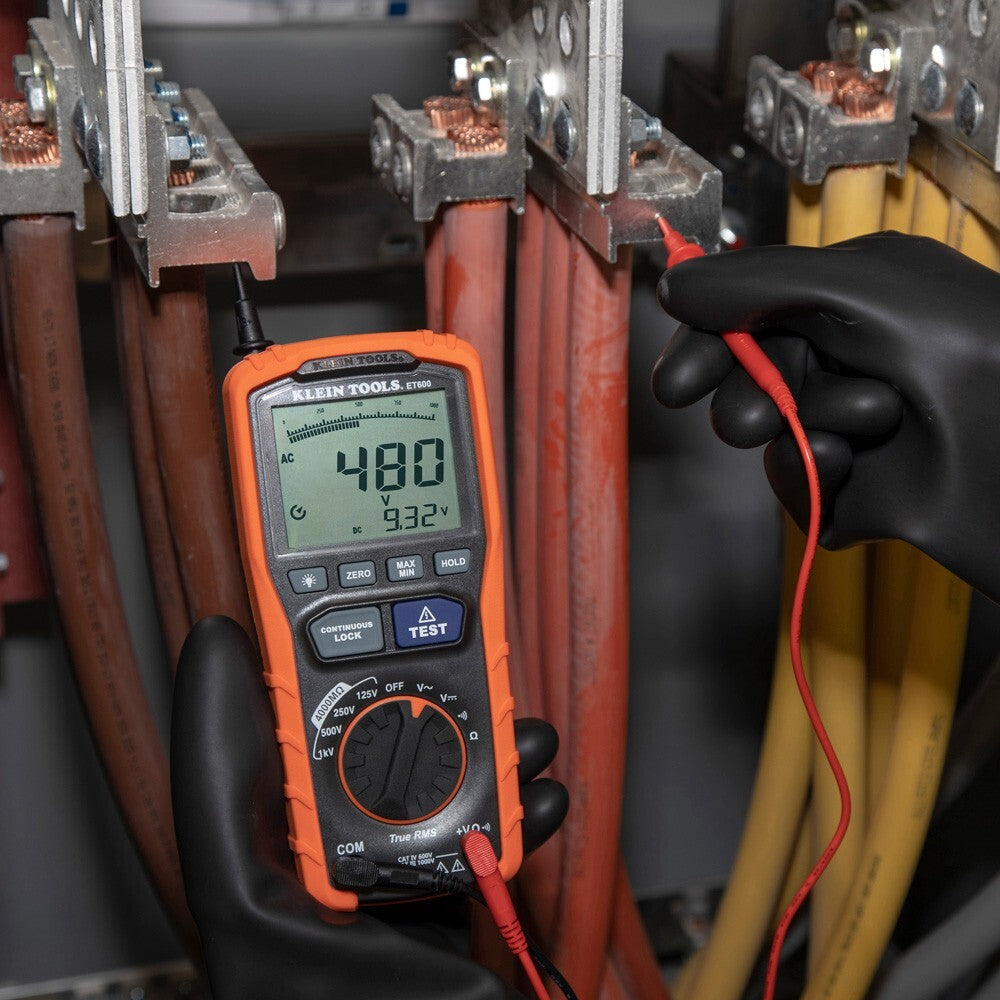

Measures up to 1000V AC/DC, resistance and continuity
Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy
Backlit display with bar graph, Auto-Power Off, High Voltage, Max/Min and Hold icons

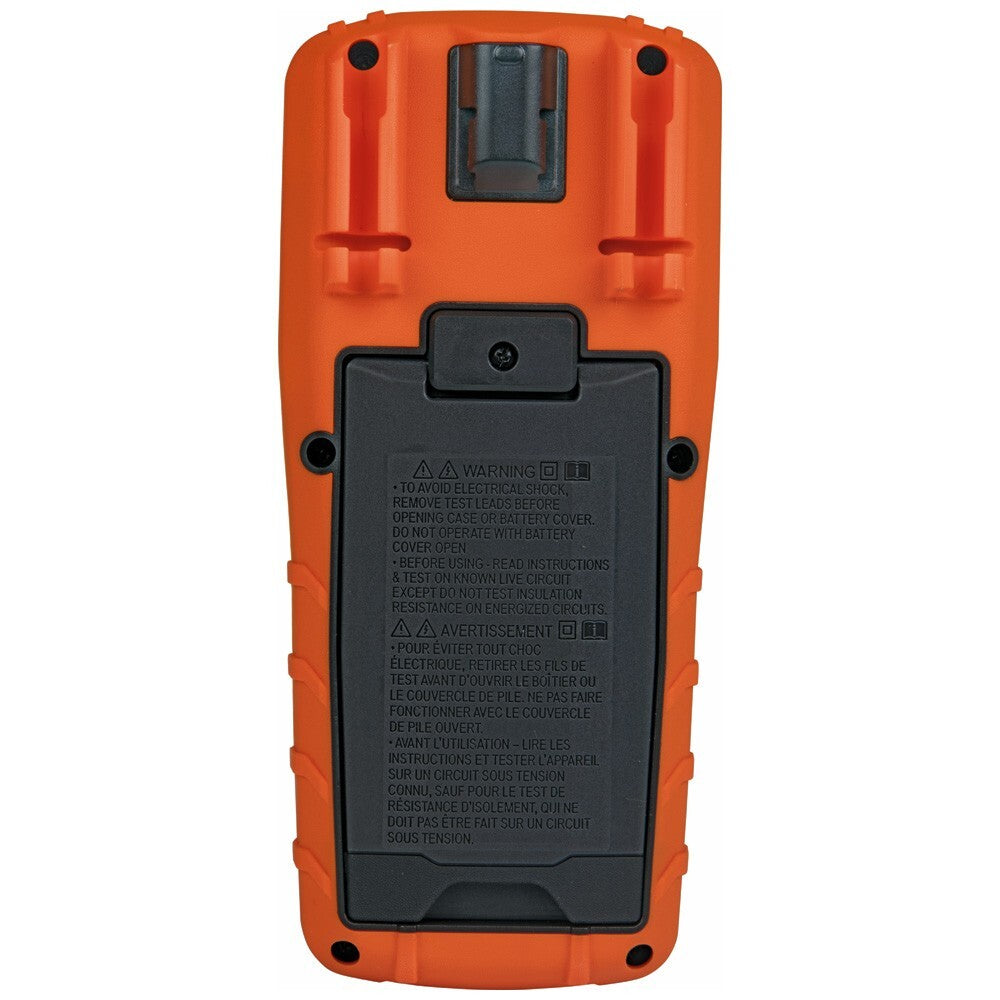

Low battery indicator with easily replaceable battery and fuse

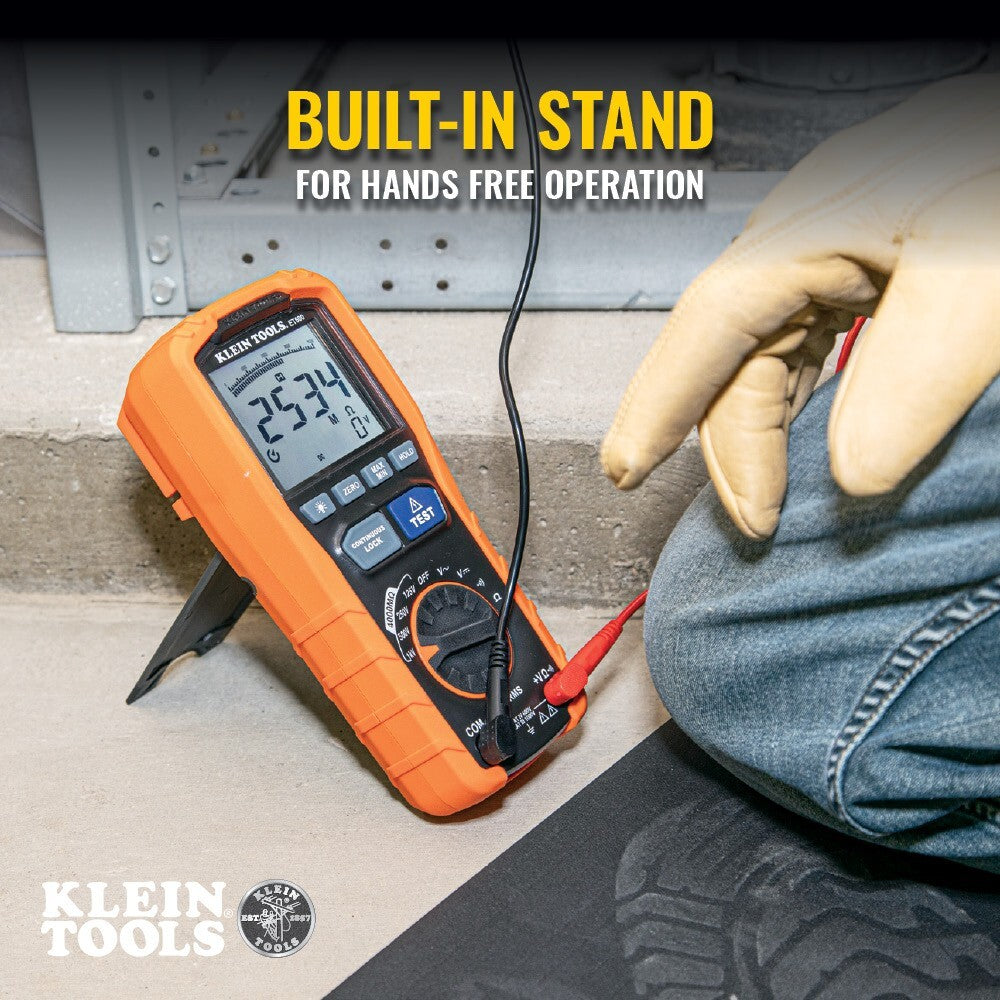

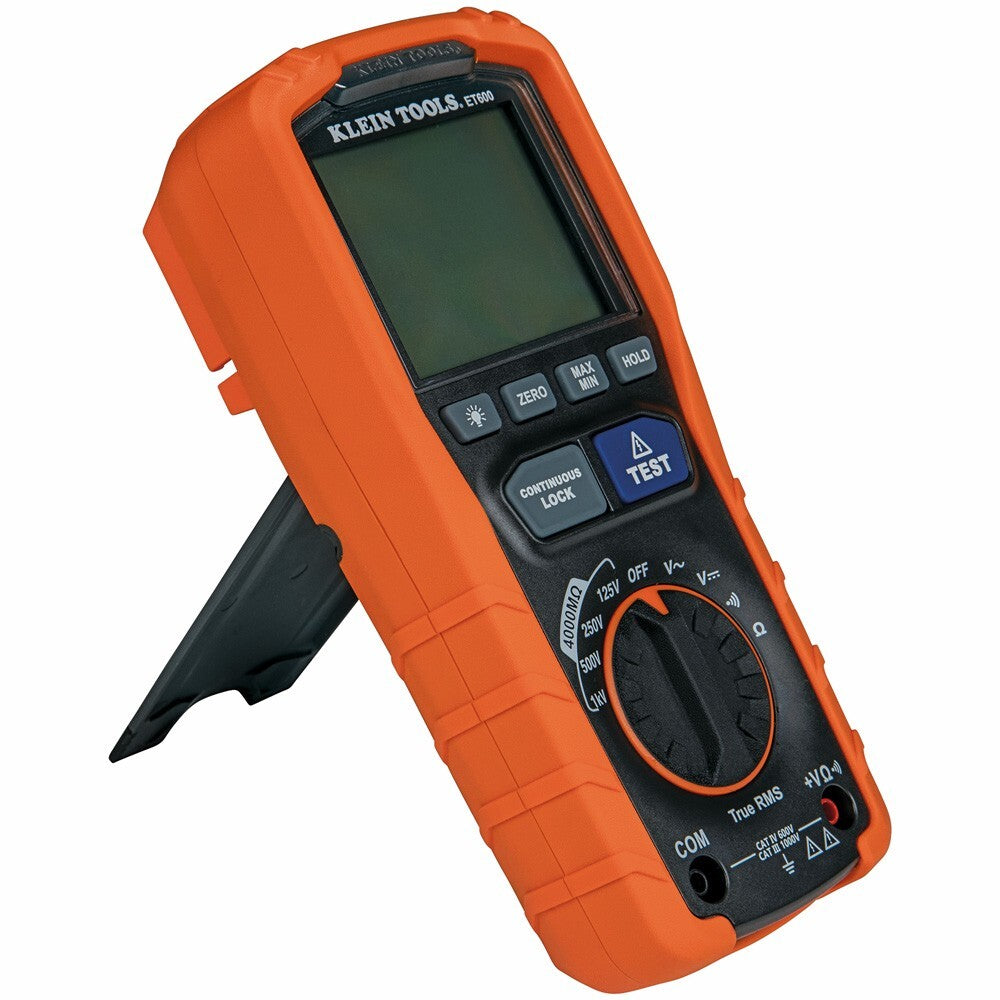

Built-in stand and optional magnetic hanger for hands-free operation
Test verification of conformity to EN61557-1,-2,-4
CAT IV 600V and CAT III 1000V safety rating

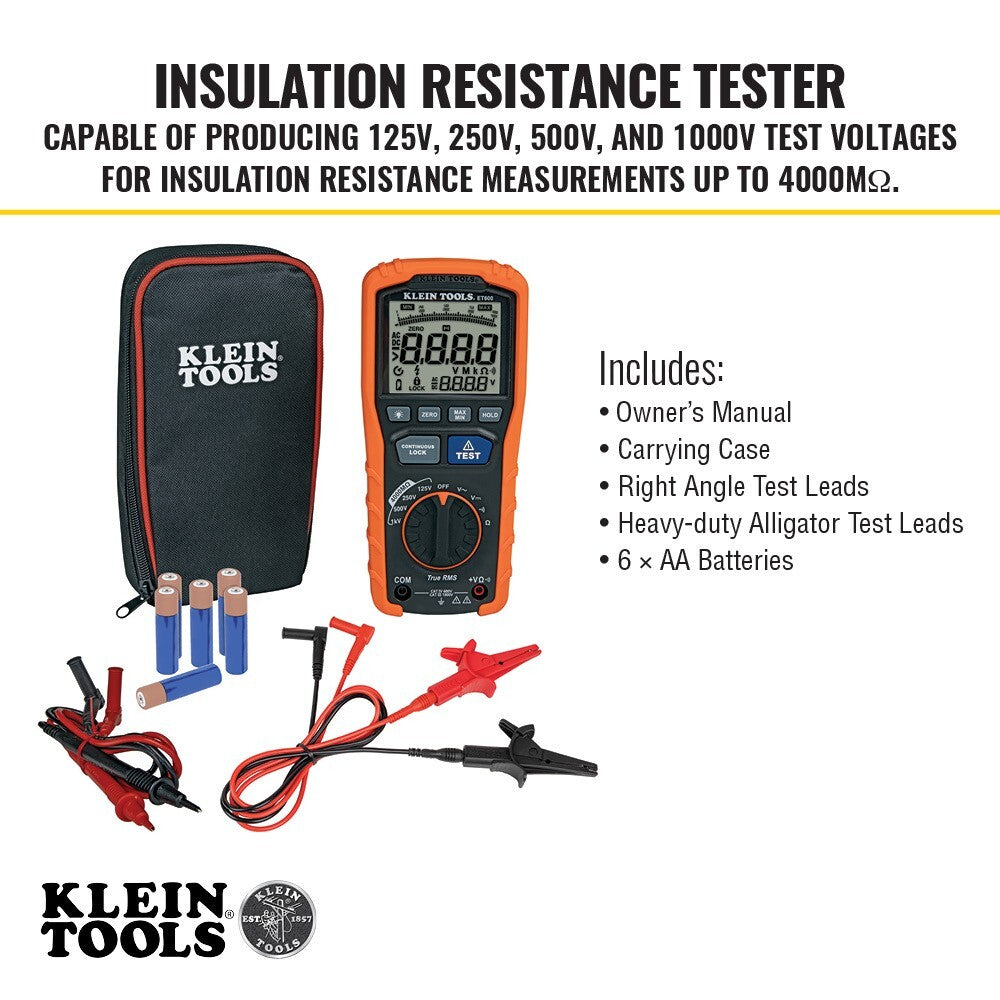

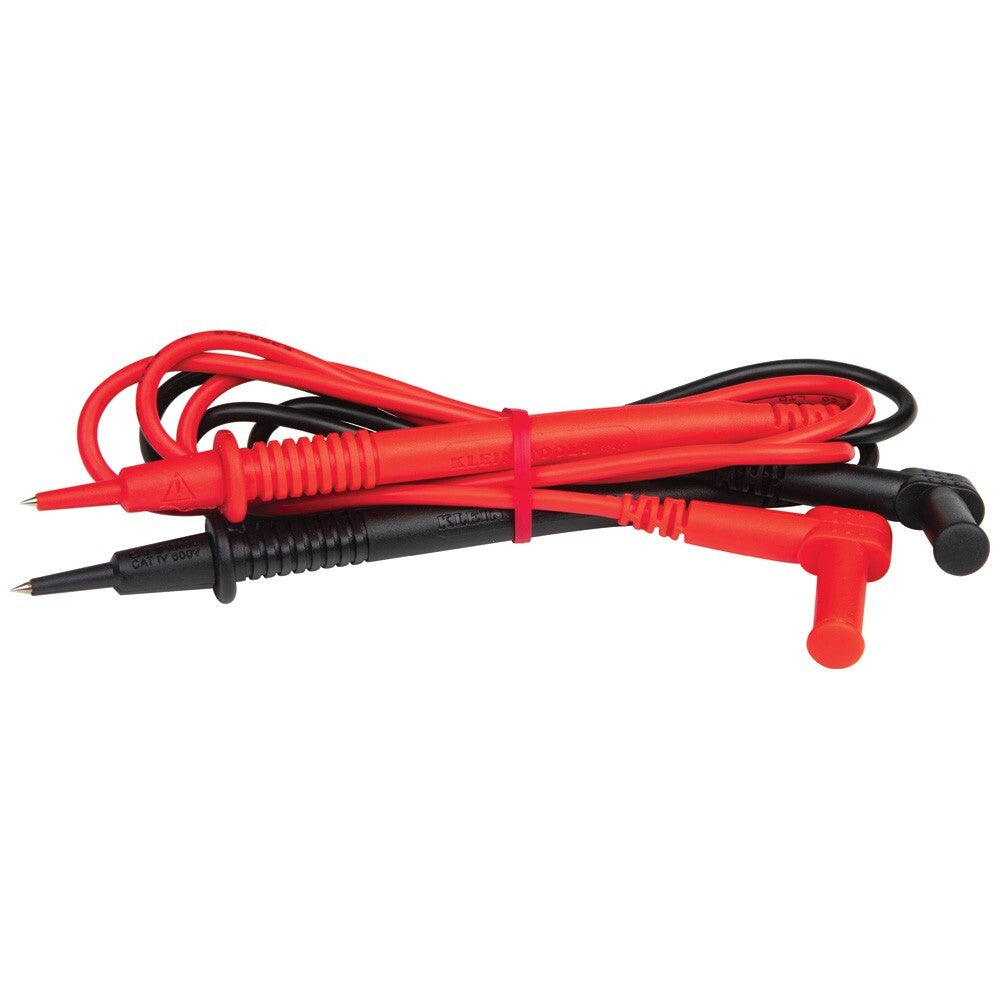

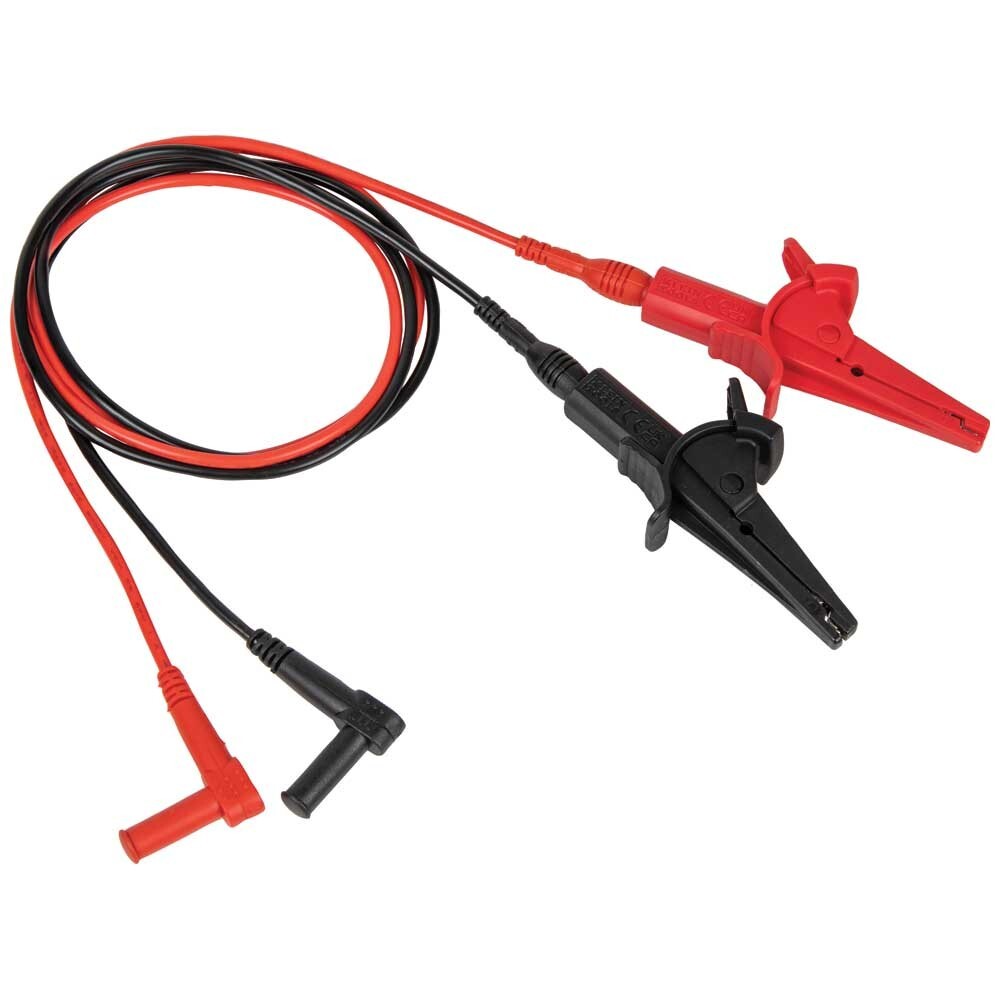

Includes Right Angle Test Leads and Heavy-Duty Alligator Clip Test Leads

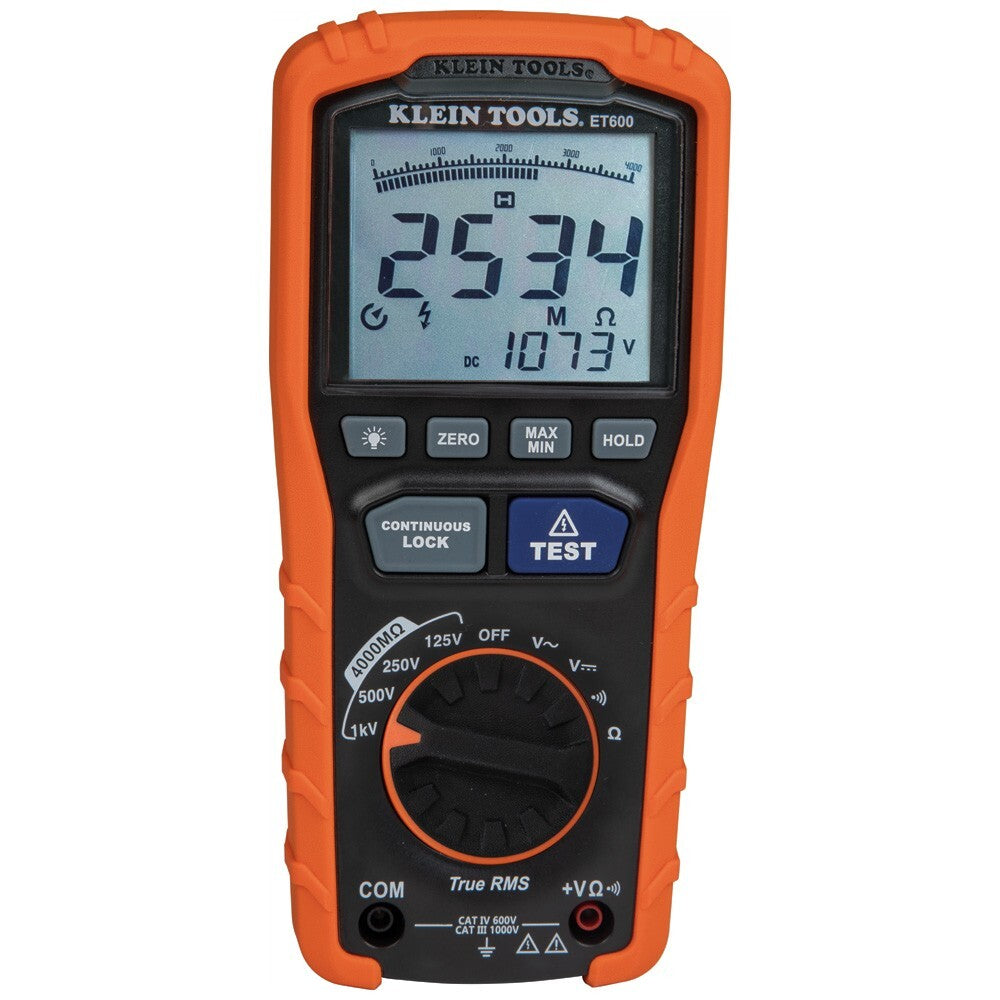

The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V and 1000V test voltages for insulation resistance measurements up to 4000MΩ. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands-free operation. Dual-function backlit display monitors the process.
Specifications
Type:
Insulation Resistance Tester
Application:
Installation, Troubleshooting and Preventive Maintenance of Electrical Wiring and Electrical Equipment, Measures 1000V AC/DC, Resistance and Continuity
Special Features:
Lock Button for Insulation Resistance Testing
Material:
ABS, Polycarbonate, Electrical Components
Batteries:
6 x AA
Display:
4000 Count LCD
Colour:
Orange/Black
Functions:
Insulation Resistance, Voltage AC/DC, Resistance and Continuity
Voltage:
125V, 250V, 500V and 1000V DC; 1000V AC/DC
Ohms (Resistance):
4000 MΩ
Standard:
CAT IV 600V/CAT III 1000V, EN61557-1, EN61557-2, EN61557-4
Included:

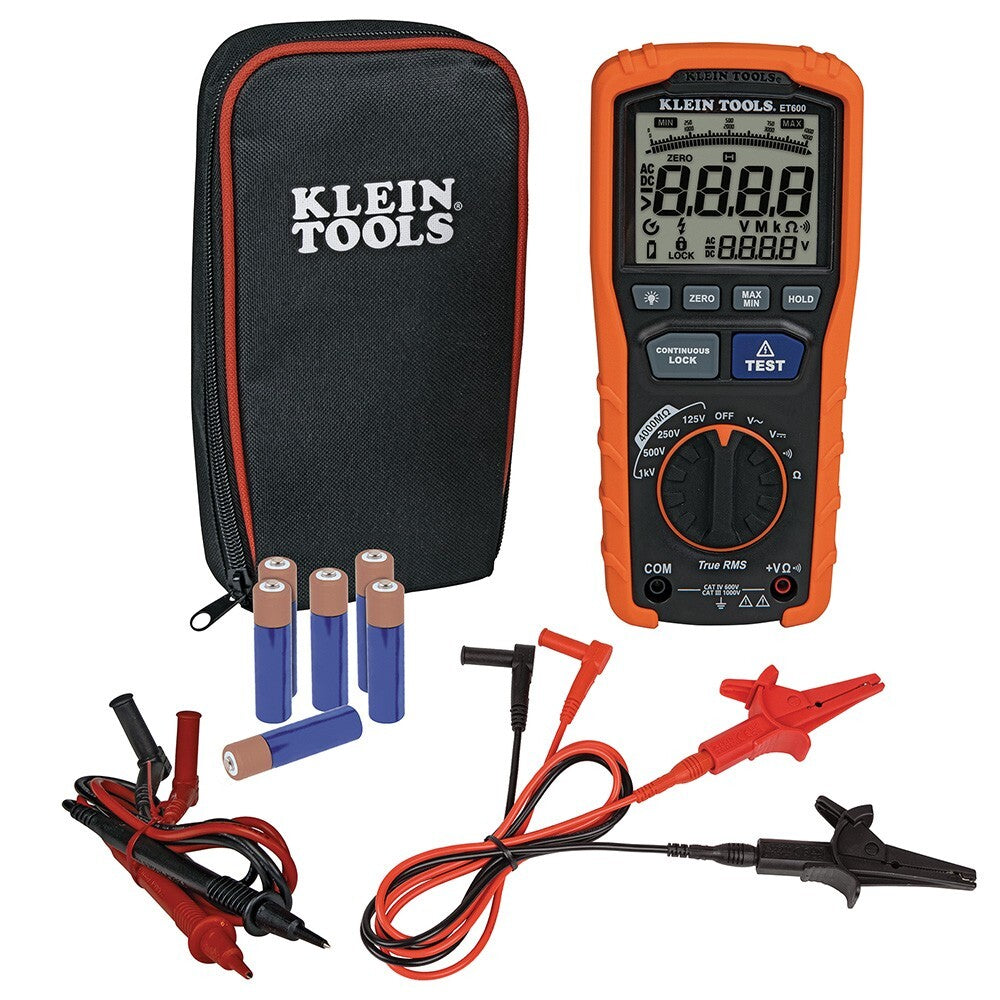

Tester; CAT III/CAT IV Safety Rated Test Leads; Heavy-Duty Alligator Clip Test Leads; Batteries; Carrying Case; Instruction Manual
