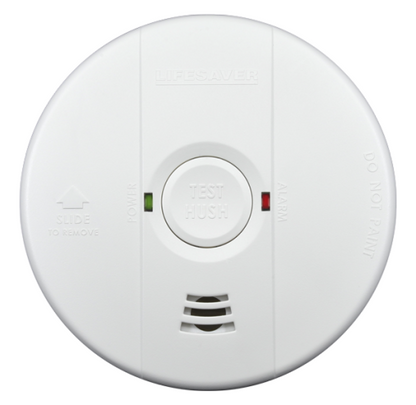

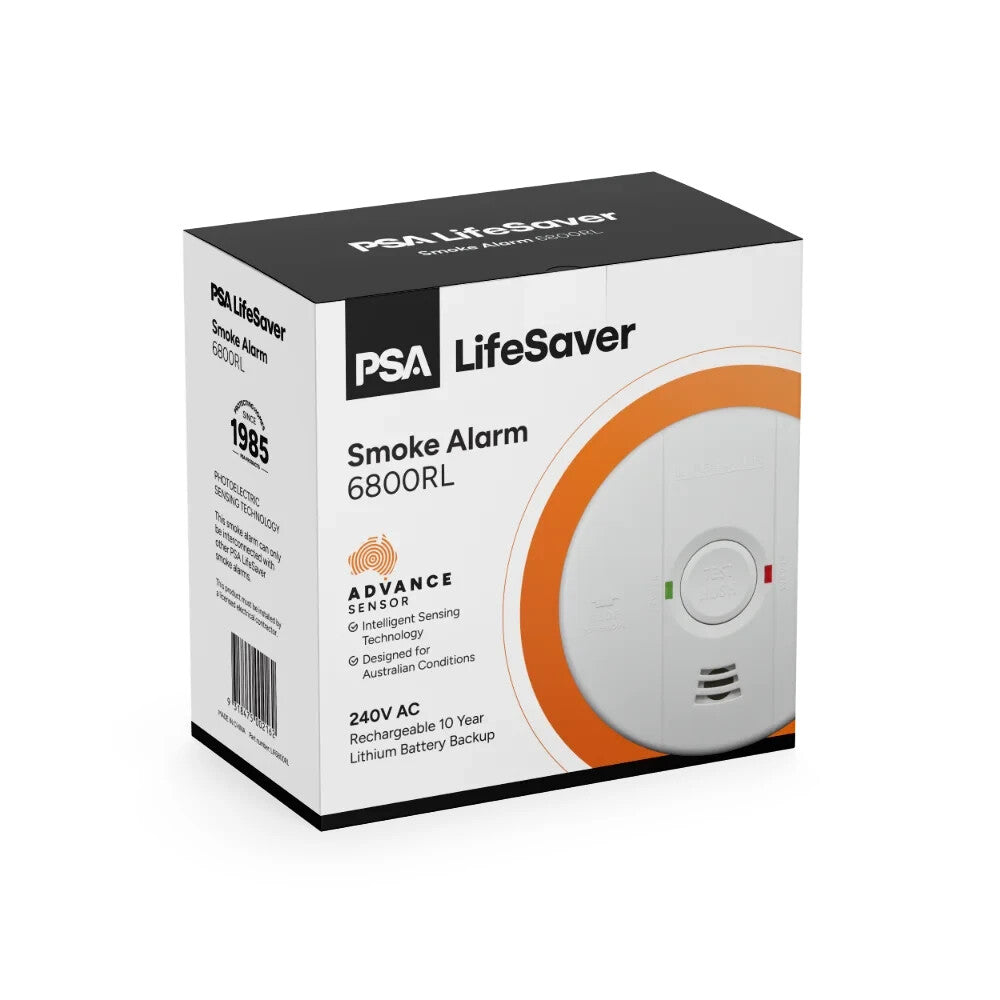

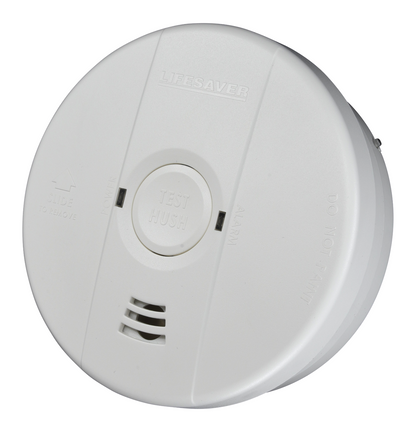

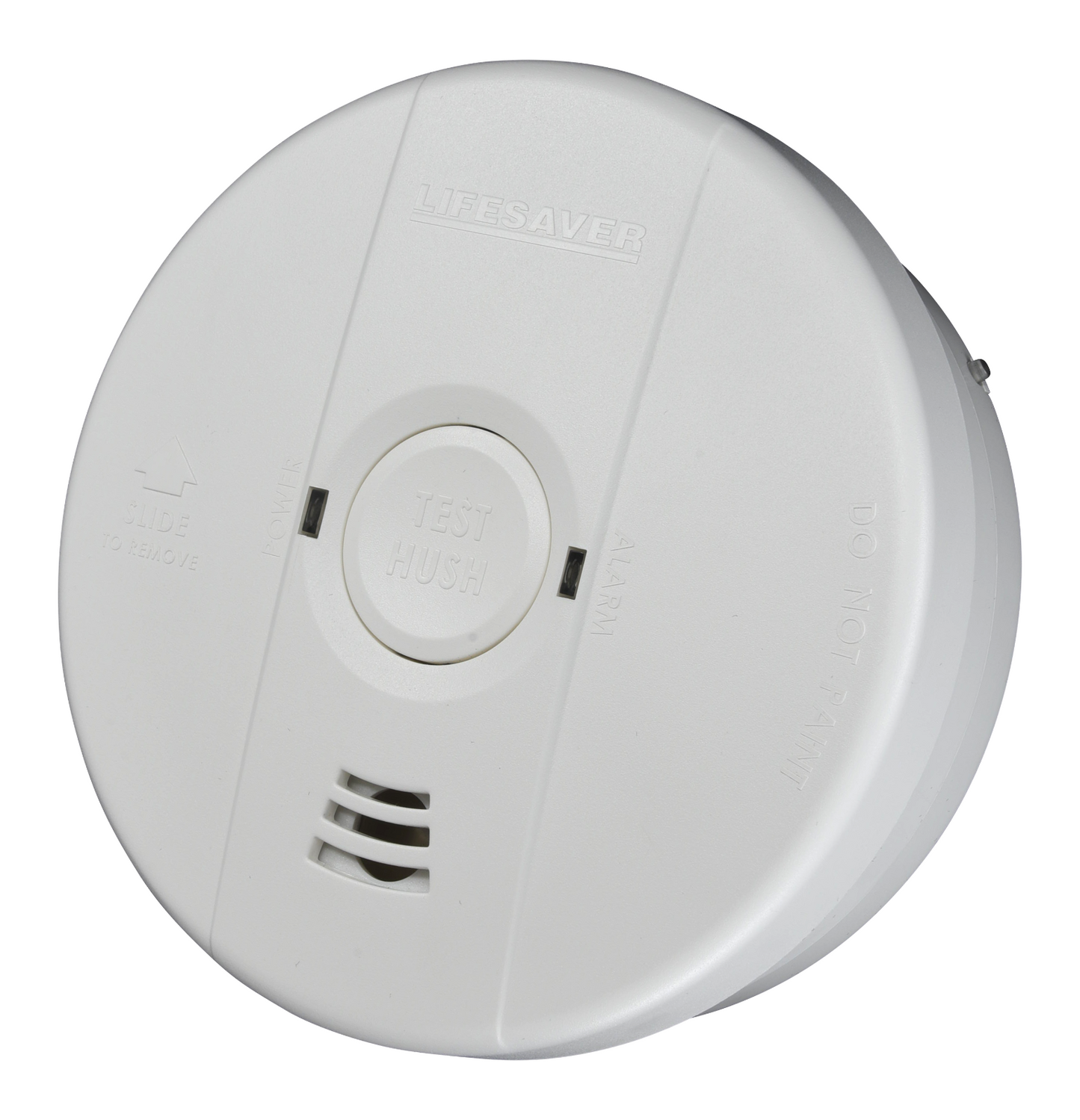

LIFESAVER 6800RL 240V Photoelectric Smoke Alarm + 10YR Lithium Batttery Backup
LIFESAVER 6800RL 240V Photoelectric Smoke Alarm + 10YR Lithium Batttery Backup
LIF6800RL Mains Powered 240V AC with Rechargeable Lithium Battery - Advanced Sensor
MODEL: lif6800RL
• New design advanced photoelectric sensing technology and intelligence to reduce sensitive activations
• 240V AC with 10 year Rechargeable Lithium backup battery back up
• ActivFire Certified, Approved to AS3786:2014

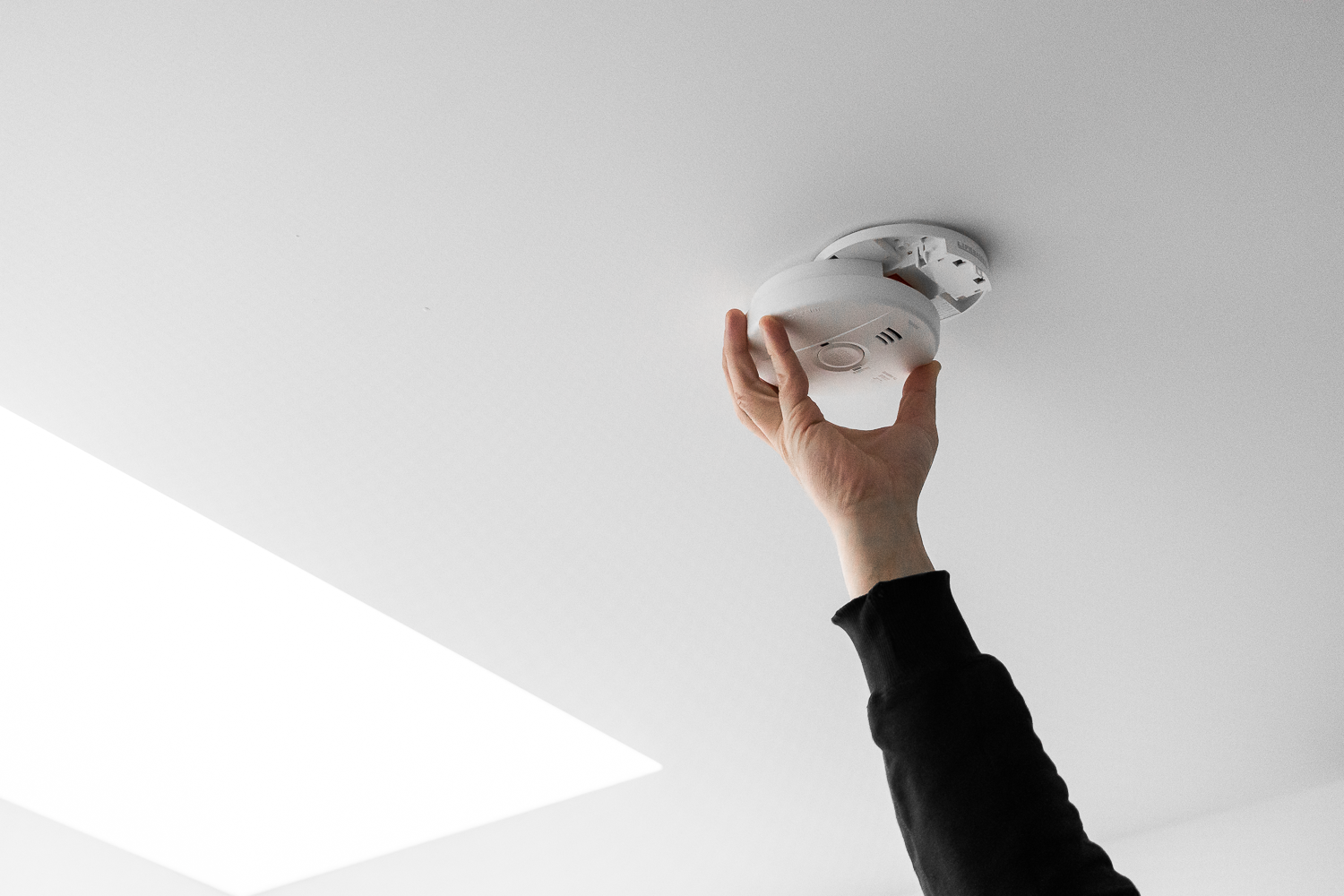

• Easy maintenance and installation with the QUICK SLIDE base
• 10 Year Warranty
| Model |
6800RL |
|---|---|
| Sensor Type |
Photoelectric - Advanced Sensor |
| Supply Voltage |
240V AC 50Hz |
| Power Consumption |
10mA max per alarm, 4mA (standby) |
| Battery Back-up |
Rechargeable lithium (non-replaceable) 10 year life |
| Interconnecting |
Interconnectable up to 24 units |
| Alarm Volume |
85dBA at 3 metres |
| Alarm Signal Pattern |
ISO8201 (T3 - Repeat 3 long beeps) |
| Temperature Range |
0˚C - 40˚C |
| Humidity Range |
Up to 93% RH (non-condensing) |
| Hush Function |
Silences alarm for 9 minutes
|
| Low Battery Hush |
Silences low battery beeping for 8 hours |
| Alarm Duration |
Alarm will sound for as long as smoke is detected, then unit will automatically reset when smoke clears. |
| Alarm Indication |
Red LED flashes every second.
|
| Alarm Memory |
Red LED flashes 3 times every 40 seconds.
|
| Chamber Monitoring |
3 beeps every 40 seconds.
|
| Indicator LEDs |
Green LED - Power indicator
|
| Wiring Terminal |
9V, Active, Switch, Neutral, Loop |
| Dimensions |
130mm (diameter) x 45mm (depth) |
| Approvals |
ActivFire, SAI Global, RCM, AS3786:2014 |
| Warranty |
5 years |
