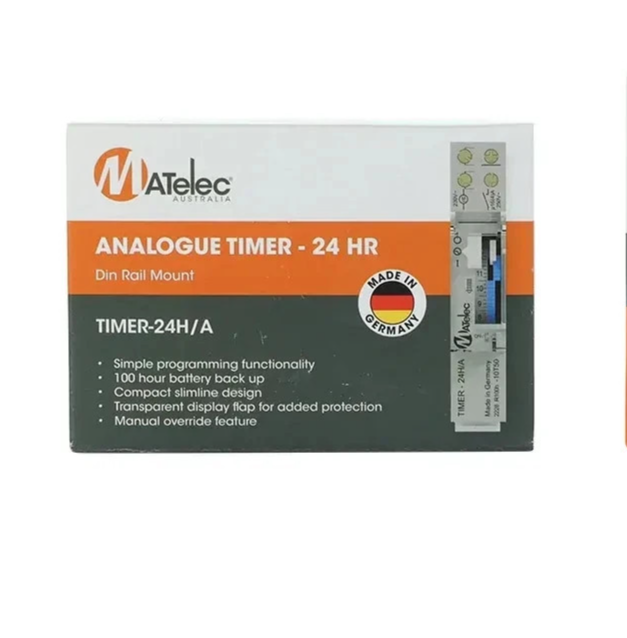

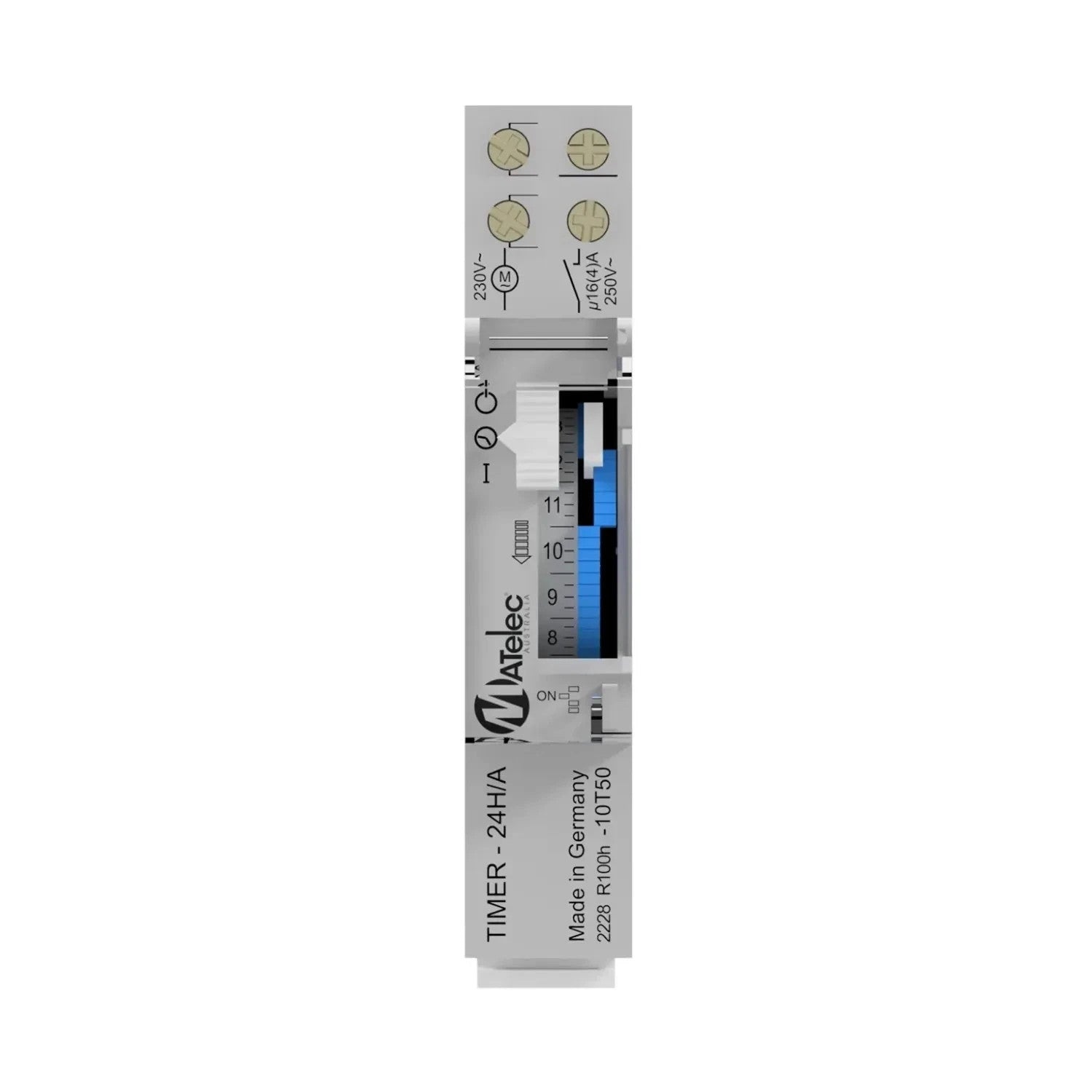

Matelec TIMER-24H/A - 16A 24hr Analogue DIN Rail Time Switch with Battery BackUp

Name: Matelec TIMER-24H/A - 16A 24hr Analogue DIN Rail Time Switch with Battery BackUp
Brand: Matelec
Price: 85.00 AUD
Availability: InStock

$85.00 AUD

Sale Sold out

Shipping calculated at checkout.

16A 24hr Analogue DIN Rail Time Switch with Battery Back-up

Simple programming functionality
Compact slimline design
Transparent display flap for added protection
Manual override feature
1 year warranty

SPECIFICATIONS

Mounting: Din Rail
Weatherproof rating: IP20
Display: Analogue
Supply voltage options: 240Vac
Operating frequency: 50/60Hz
Power consumption: 1W
Relay outputs: N/O
Rated switching voltage: 240Vac
Operational current range: Resistive 16A, inductive 10A
Time Base: Quartz
Timing range: 24 hours, 15 min segments
Switching functions: Off, Auto, On
Max cable capacity: 1 Phase: 4mm2
Working reserve time: 100 hours
