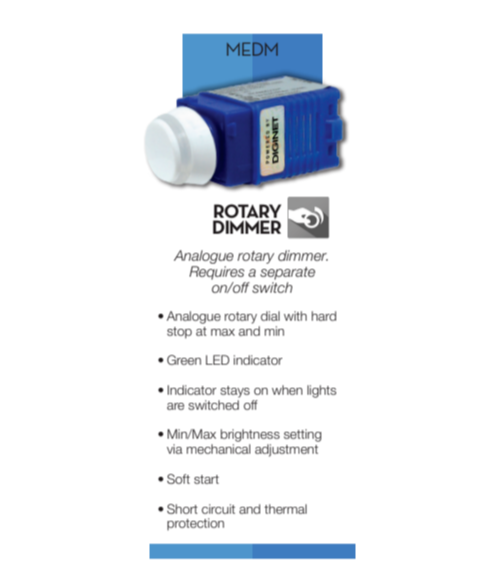

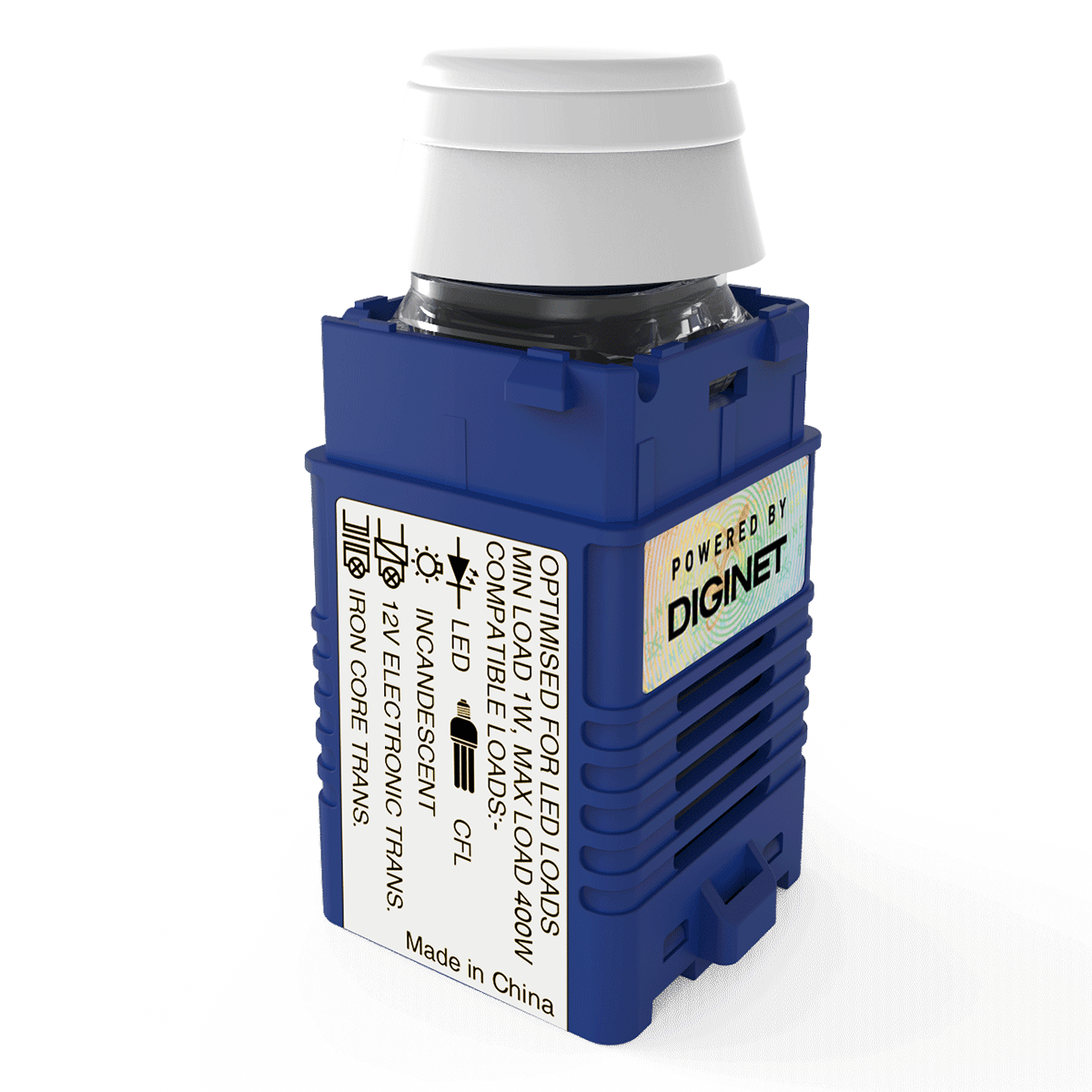

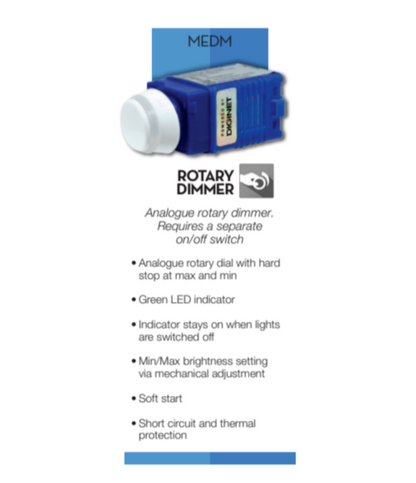

The Diginet MEDM Adaptive Phase Dimmer is designed in Australia to provide optimised dimming of LED based lamps and drivers, this high quality, two-wire phase control wall plate dimmer has a minimum load rating of 2W, allowing it to adapt to a wide range of available LED drivers. Although optimised for LED lighting loads, this dimmer also provides excellent compatibility with other common lamps types such as incandescent lamps, 12V halogen (dichroic) lamps /transformers and CFL's.
Maximum 400 W load
Incorporates filtering to reduce load brightness variation
Stable operation with most non-dimmable lamps (to a limited dimming level, lamp dependent)
LED Illuminated rotary dial for smooth and easy min/max adjustment
No neutral wire connection required for wall-plate retrofit installation (2-wire dimmer)
Incorporates a thermal fuse to protect itself against overheating
Incorporates filtering to reduce load brightness variation under conditions of line voltage ripple signal injection
Analogue rotary dial with hardstop at maximum and minimum
